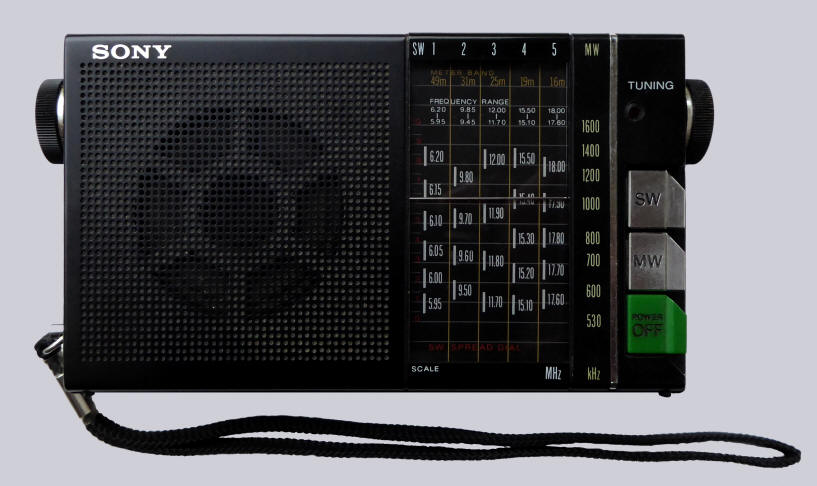

Compact 6 band receiver for medium and short wave
In black plastic housing. Receives on medium wave (187-566 meters) and short wave (16-49 meters, divided over 5 bands). A telescopic antenna is installed in the top; on the left is volume control, a connection for an earphone and a carrying strap, on the right are the wavelength keys and the tuning knob. The radio has a built-in ferrite antenna. The loudspeaker has a diameter of 5 cm, output 150 mW (with 10% harmonic distortion).
The original price was $ 69,99 in the US.
Data
Serial number 50741
Made in: 1981
Purchasedin: 1981
Voltage: 3 volt (2 x AA)
Dimensions (b×h×d): 13.4 x 7.4 x 2.3 cm
Weight: 225 grams, including batteries





Schema

What was broadcast in 1981?


Listen to "Lady Bird", by the Chet Baker Sextet, Chet Baker (tr), Bob Mover (as), Jon Eardley (flugelhorn), Dennis Luxion (p), Rocky Knauer (b), Burkhart Ruckert (d). Recorded live in The Salt Peanuts Club, Cologne, May 1981.

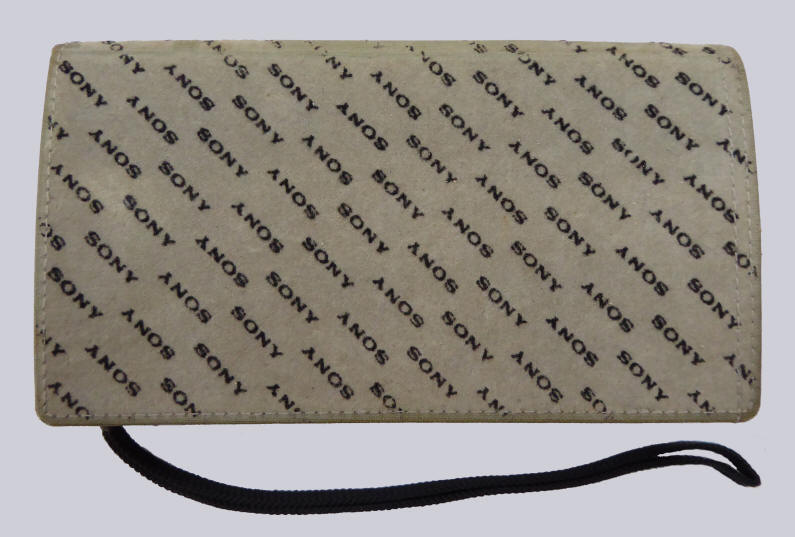

The radio in its protective cover
