Superheterodyne receiver

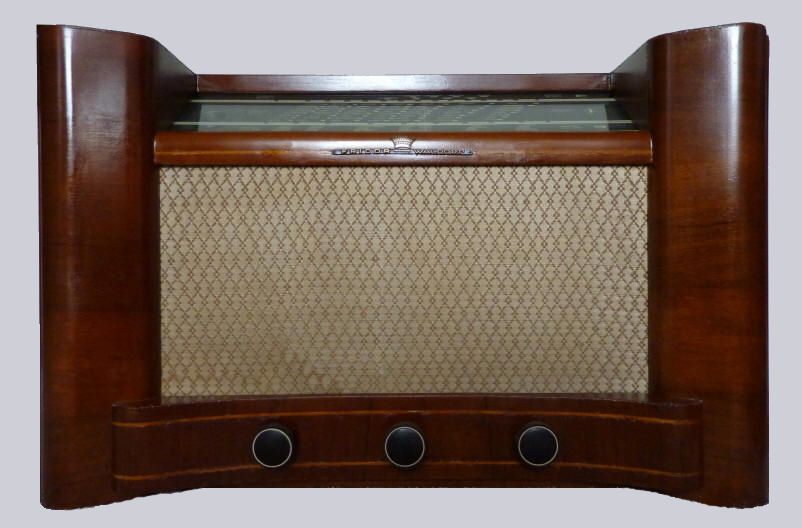

Shallow, veneered cabinet with lighter coloured stripes. The station scale is made of glass, illuminated from both sides by two scale lamps. The station indicator is made of transparent plastic. Bands: short wave (16-50 meters), medium wave (200-550 meters) and long wave (800-2000 meters).
The knobs from left to right: tone control for radio and gramophone in steps, on/off-volume, tuning. On the right hand side a wave-range selector. On the back connections for gramophone, an extra loudspeaker, antenna and earth.
Gegevens Buizen
Serial number: 72608
Dimensions (whd): 62 38,5 25 cm
Made in: 1949
Purchased in: 2010
Donated in: 2018
Voltages: 110, 125, 145, 200, 220, 245 V~



click on a valve for more information

Circuit





What was broadcast in 1949?



Listen to "I'll dance at your wedding" by the AVRO Dance Orchestra "The Skymasters", leader Pi Scheffer, recorded in 1949.

Back

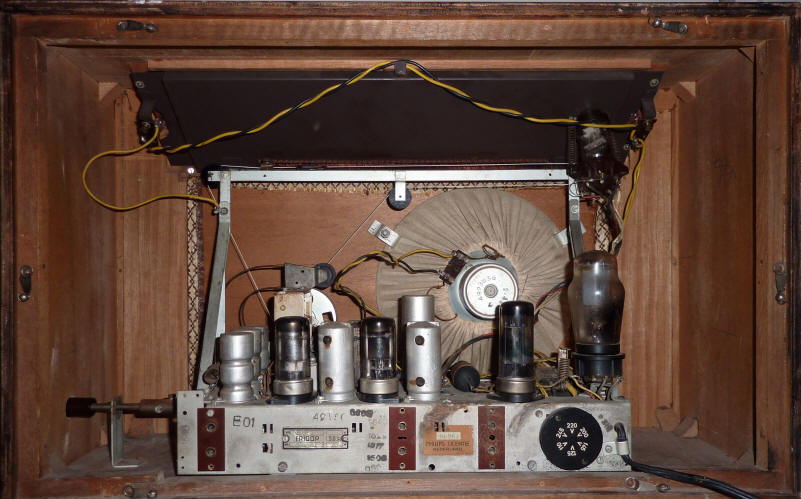

The chassis was made by Philips (almost the same as the Swedish BS491A) and used only 4 tubes, the "four-tube" system, first made in 1941. The output transformer was replaced by the wrong Philips service transformer 918/06. This service transformer was replaced by an almost original one.
