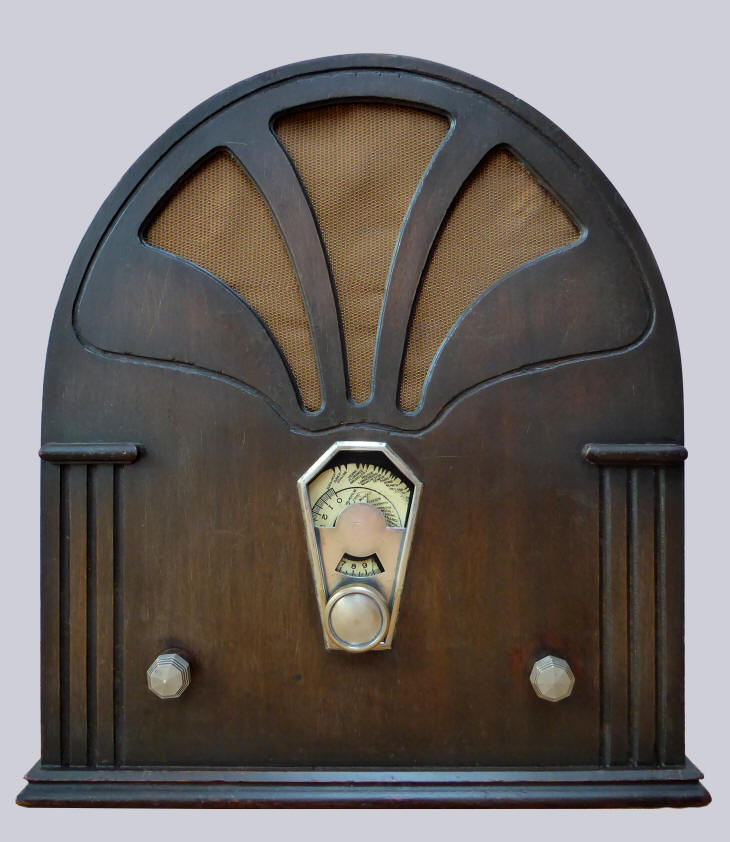

In dark brown stained wooden
case with silver plated solid brass knobs, illuminated scale, with a

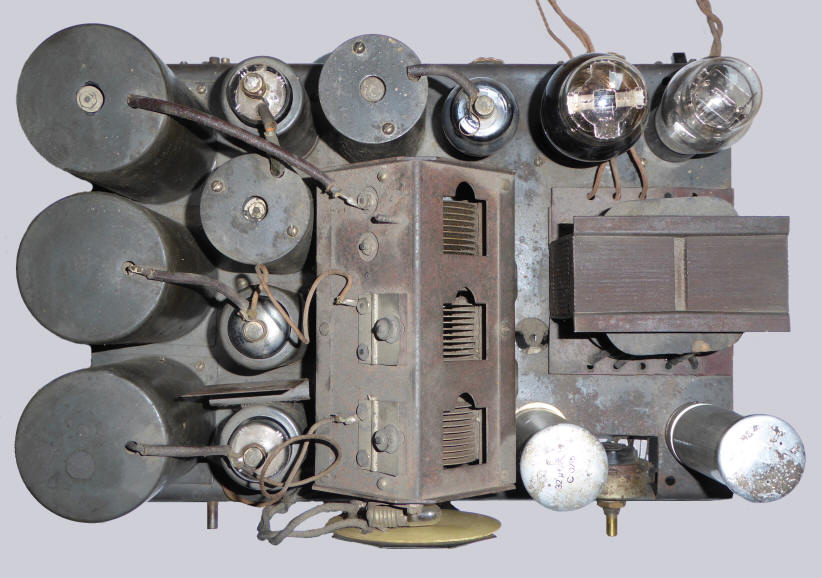

numerical layout (0..10) and station names. The receiver has six
American tubes.
The knobs from left to
right: wave length switch, tuning, on/off/volume.
Receives on medium
wave (192-570 meters) and long wave (770-1920 meters).
The intermediate frequency is 152 kHz.
The
loudspeaker, with field excitation coil, has a diameter of 16.7 cm.

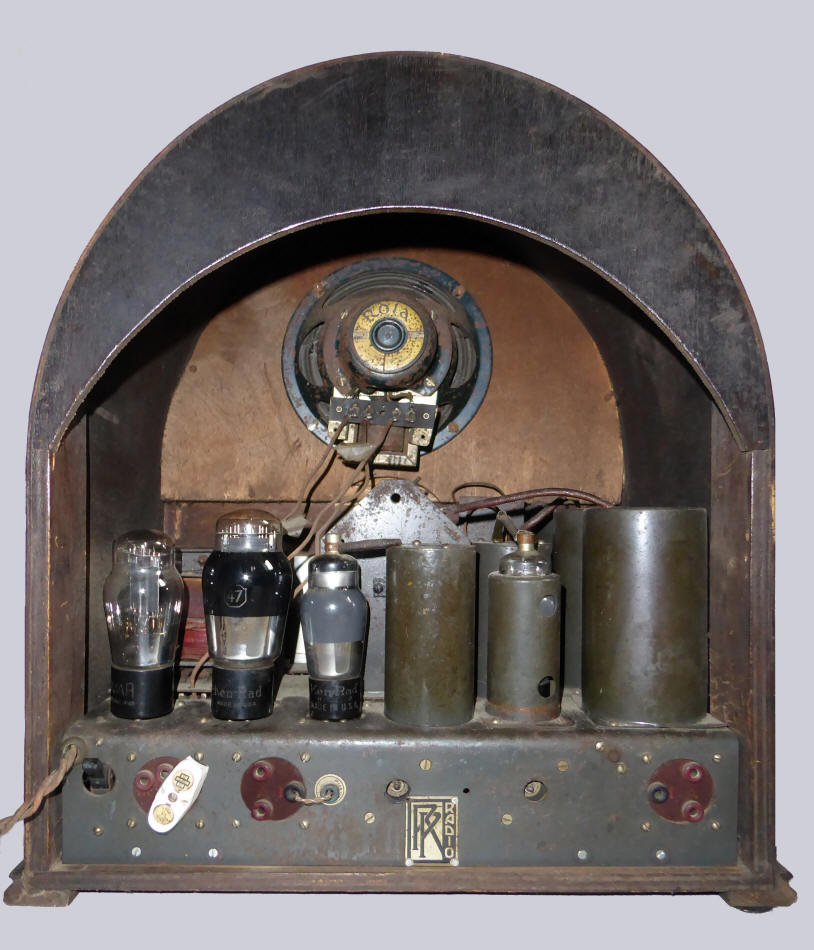

At the rear are two antenna connections,
a ground, a tone switch, a connection for an additional
loudspeaker and a pick-up connection. The correct mains voltage can
be set by means of a porcelain plug with a built-in
fuse.
On the right
a picture from magazine "Radio Home", no. 202 of
August/September 1933, in which the model was announced.
