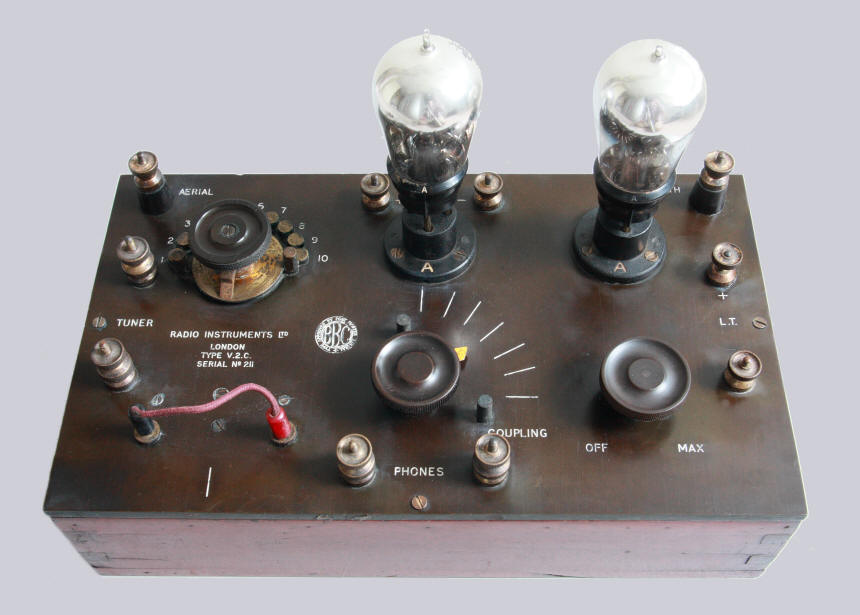

In a mahogany cabinet with ebonite
front and knobs. The radio needs a tuner unit, that can
be connected at the left. (e.g. this
Murdock Tuning Condenser)
The other terminals: above, left:
aerial, above middle: HT + and -, upper right: earth. At
the right: LT + and -. A set of headphones can be
connected at the bottom of the front.
The knob on the left is used to
select a tap of the anode reactance unit. The knob in
the middle of the set can be used for reaction control.
On the right a rheostat for the filament current.

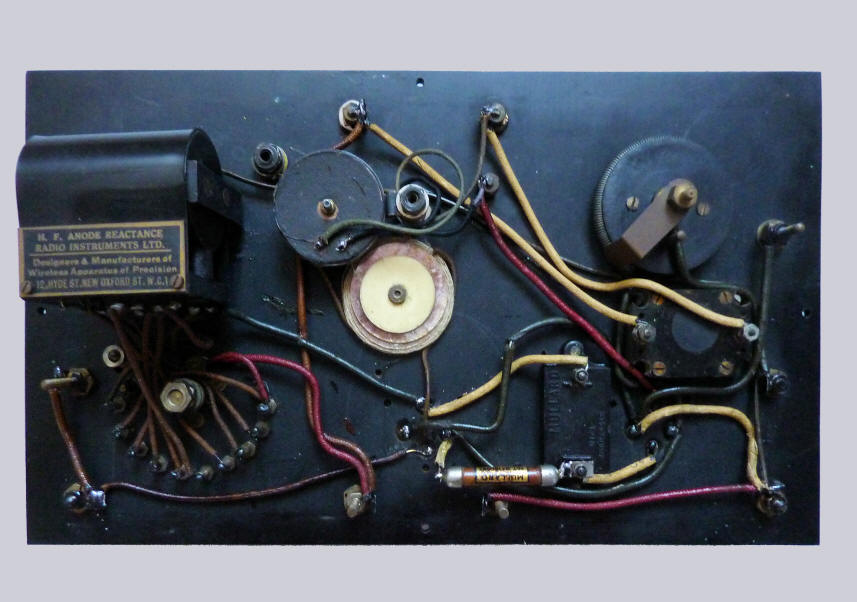

The receiver has a
detector and a HF valve, probably dull-emitters.
