In brown Bakelite cabinet with
Bakelite knobs. For medium and long wave reception. The
moulded cabinet was made by Birkbys Ltd., Liversedge, Yorkshire.
This particular form of Bakelite was called "Elo".

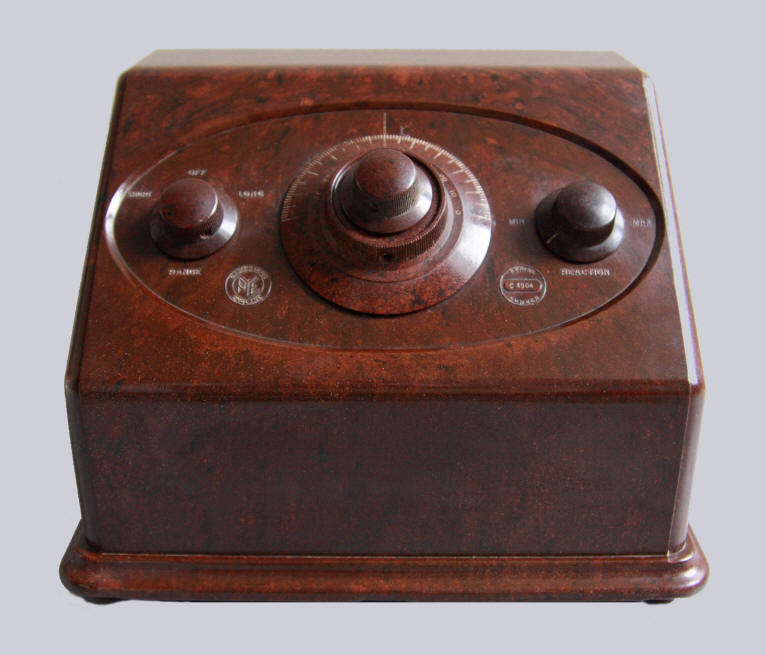

The left knob operates the wave
length switch; the knob in the middle is used for tuning
(fine tuning with the centre knob). The right knob is
used for reaction control.

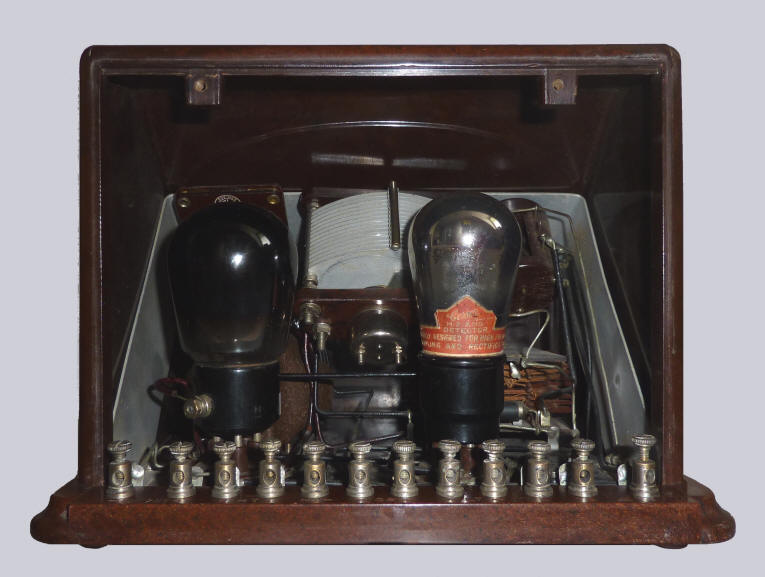

The receiver has a detector tube with
reaction and an LF tube.

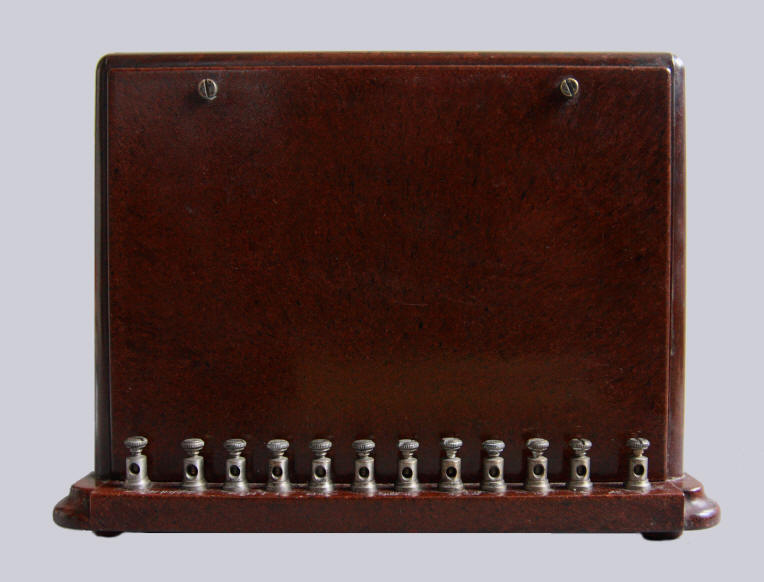

There is a row of 12 binding posts at
the rear for the different voltages, antenna and earth.
(from left to right: output-, output+, HT2+, HT1+, HT-, GB-, GB+, LT+,
LT-, E, AE2, AE1).
