Model R16P2

Model R16-J

8 Transistor pocket radio

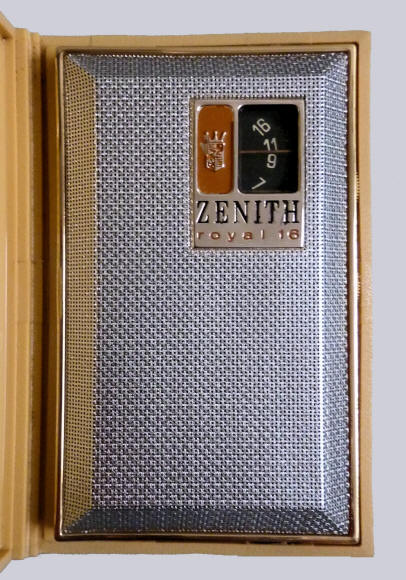

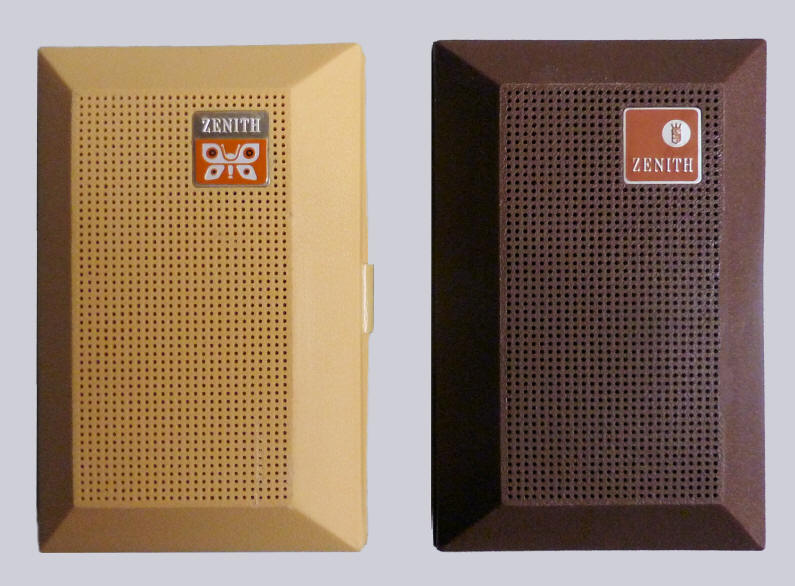

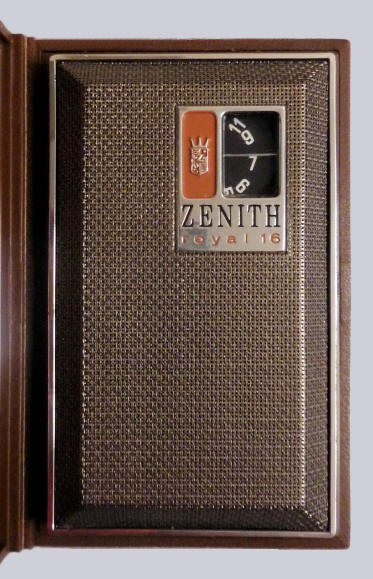

The Zenith Royal 16 "Billfold" radio came in a variety of colours and styles. The snap clasp on the side of the plastic case holds it closed securely. On some models, the speaker grille was plain, while on others it might have intricate designs such as flowers and lace. Made in Japan for the American market.  For medium wave reception. An earphone jack is situated on the back of the case.
Data                                                                        Transistors
Serial numbers F0923323 (R16P2) 2SA22
  212713 (R16-J) 2SB54
Dimensions (h×w×d) 13.5 × 8.5 × 3.5 cm 2SB56 (2x)
Made in 1965-1969 SA466 (4 x)
Purchased in 2011
Voltage 2 x 1.5 volt AA batteries

Circuit

What was broadcast in 1964?



Listen to "In the Midnight Hour" by Wilson Pickett, recorded in 1964

Model R16-J

Model R16P2
