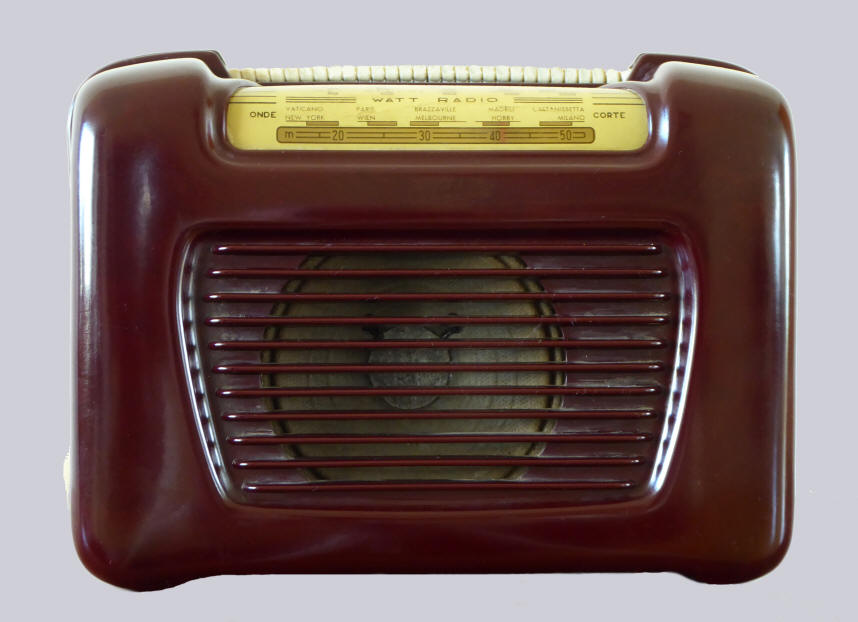

Compacte superheterodyne AC/DC receiver

In walnut plastic cabinet with two white knobs on the sides. With semi-circular scale and white, plastic-coated handle.

At the rear there is an antenna connection and a jumper with which the device can be operated at 127 or 150 volts.

For medium wave (200-560 meters) and short wave (19-50 meters).

Loudspeaker diameter 10 cm. The intermediate frequency is 470 kHz.

The original price was . There is also an ivory model. The receiver is part of the series "Anie".

Data

Valves

	Click on a valve for more information
	Circuit

What was broadcast in 1952?

Listen to "Boogie Woogie" by Angelini's Orchestra, recorded May 2, 1952.

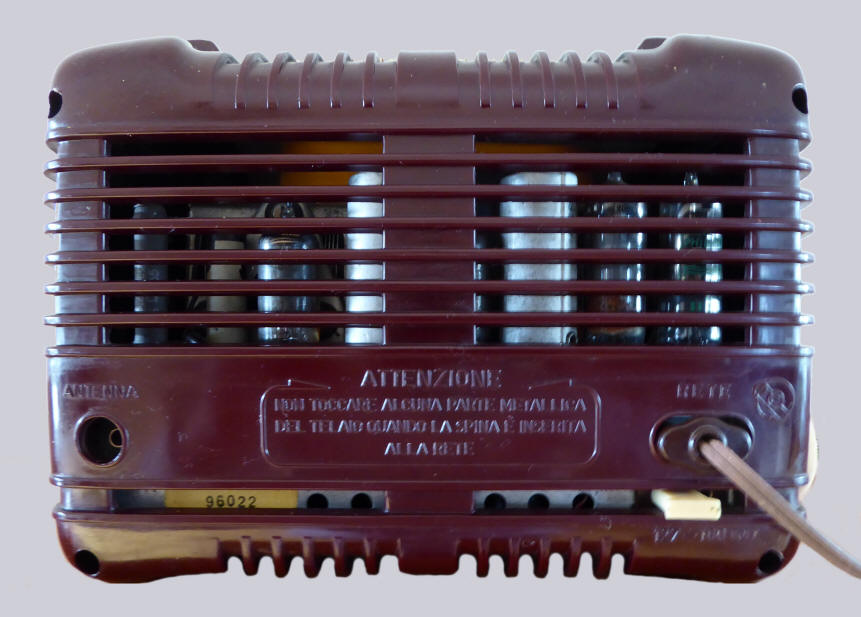

Back

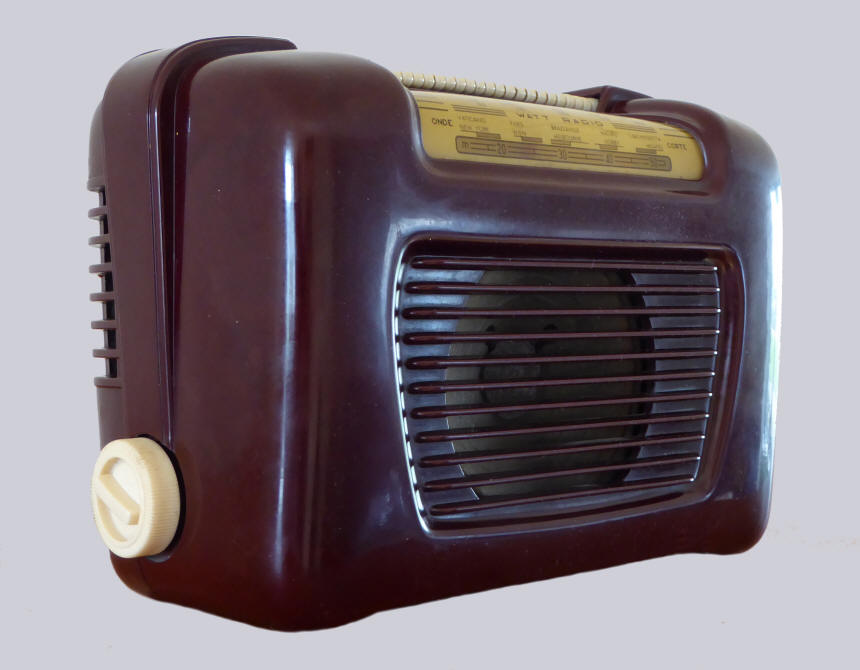

Side

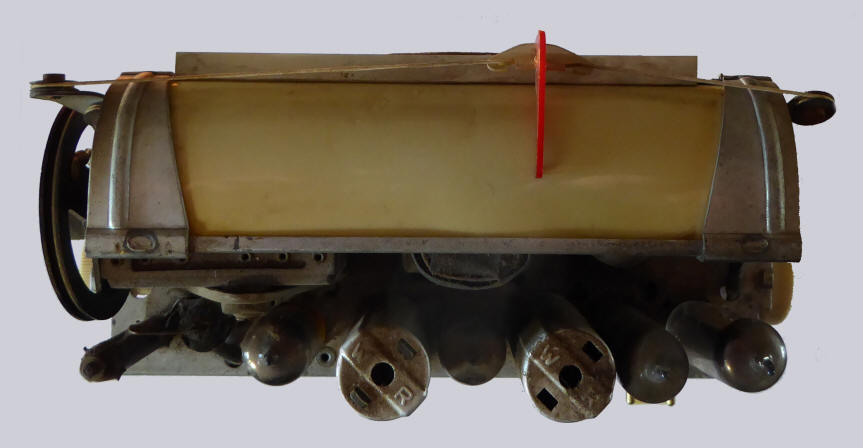

Top view of the chassis

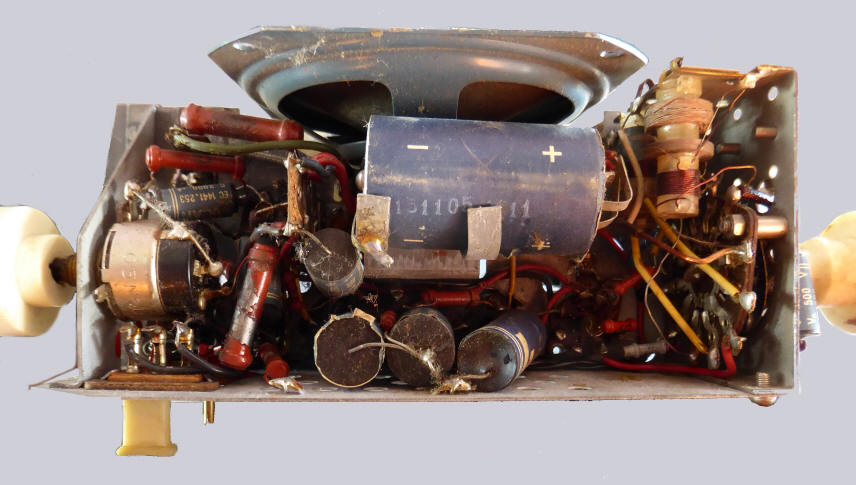

Bottom view of the chassis

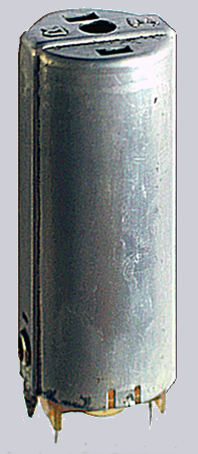

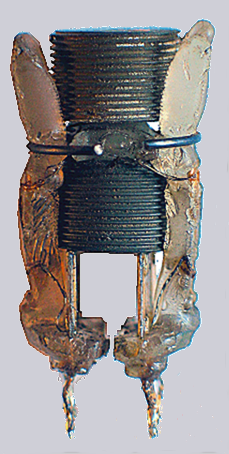

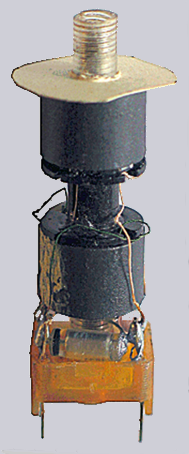

The damaged intermediate frequency coils	A new set of coils	The refurbished coil can (with thanks to John Hupse)
The interior of this intermediate frequency coil became very hot due to the proximity of 2 tubes. The plastic suspension of the coils melted and the upper coil collapsed.
