Piano model in a mahogany cabinet with
ebonite on the top and front.
It is a 1-1-2 receiver with resistance coupling.
The external design is strongly
reminiscent of Ducretet.

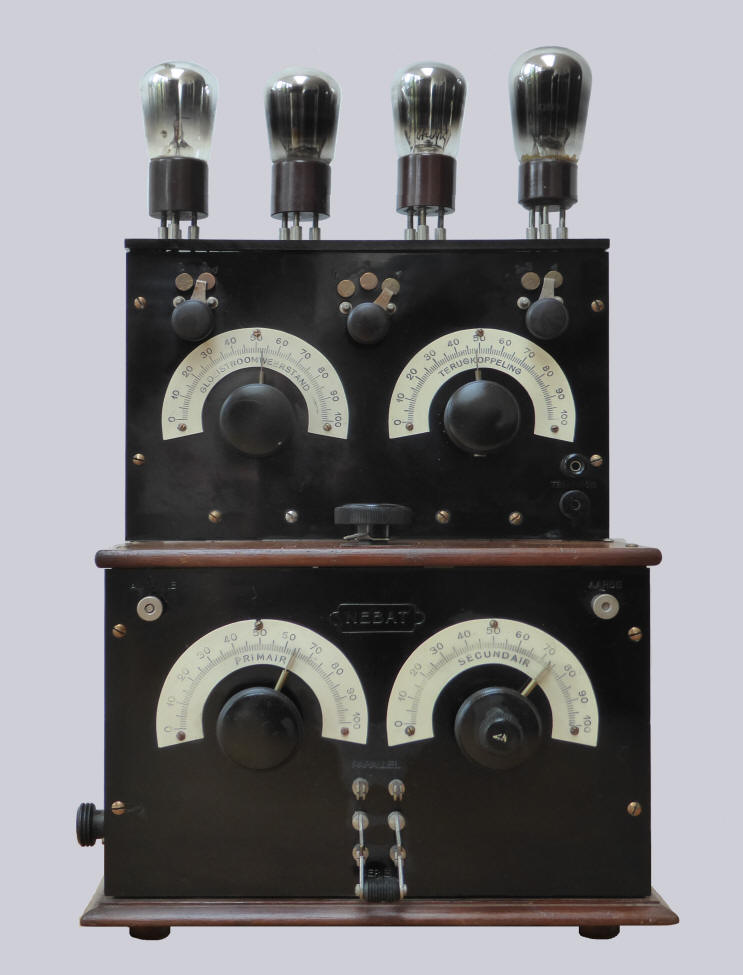

The knobs and terminals from top to
bottom and from left to right: switch tube 2/tube 3-4,
switch tube 2/3/4, switch tube 3-4.
Below: filament resistance and feedback.
Left: loudspeaker connection.
On the top of the lower half: wavelength switch.
Bottom half: antenna jack, primary tuning, secondary
tuning, ground.
Bottom: series-parallel switch.

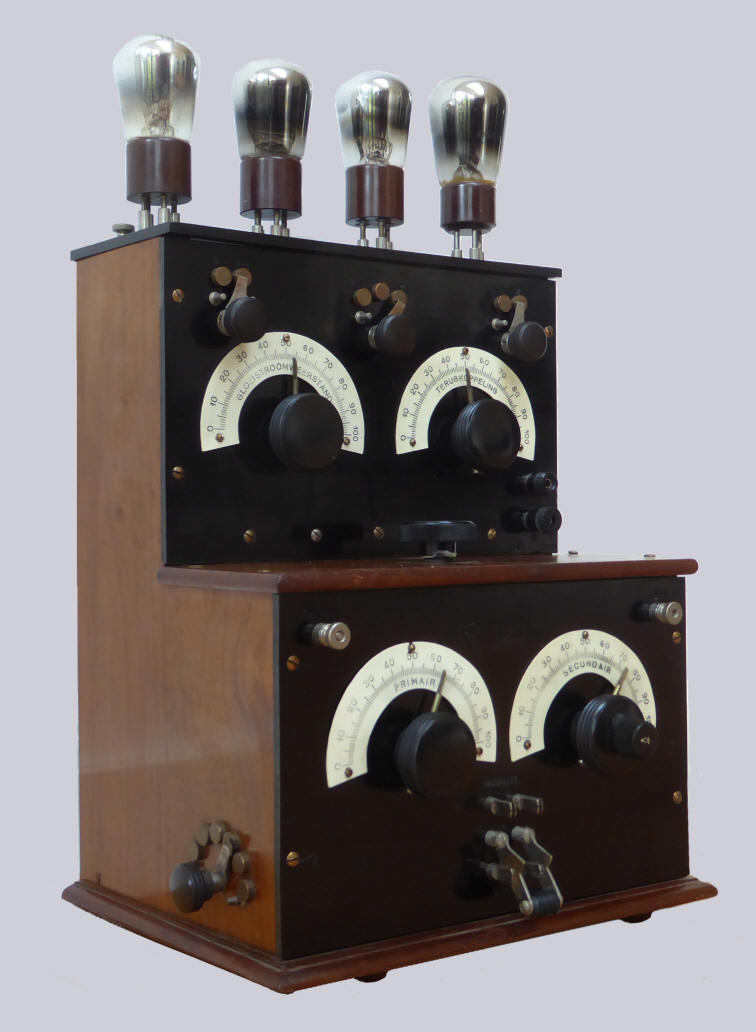

In the left side is also a wavelength
switch.
