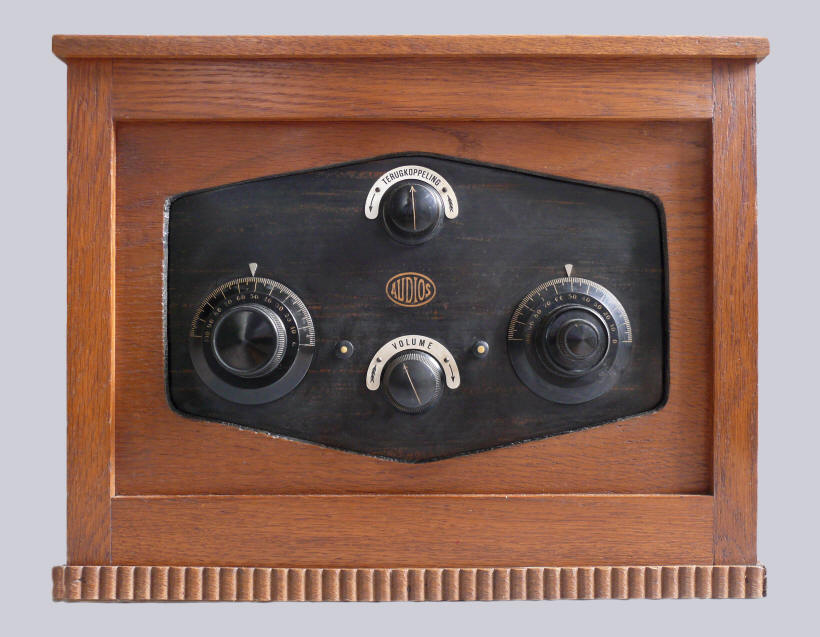

Oak cabinet with ebonite front and bakelite knobs. The
base of the cabinet has a decorative border which
extends along the sides. At the rear is a hinged lid
that can be used to access the valves.
Left and right on the front, the two tuning buttons
(the right one with fine tuning). The top button controls the amount
of feedback. Between the tuning knobs is a volume
control knob, left and right, two push/pull switches for
selecting the wavelength range. The antenna, the earth
and a loudspeaker can be connected at the back.
The tubes (excluding the rectifier) are all equipped
with a side connection.
Type plate
The original price was f 155,-.
Data
Valves
Serial number:
3213
Dimensions (h×w×d):
33 × 42.5 × 21.5 cm
Made in:
1929
Purchased in:
2014
Voltage:
220 V ~
Click on a valve for more
information
What was broadcast in 1929?
Listen to "De
oudjes doen het nog best", a medley of Dutch songs, sung by Kees Pruis, recorded
in 1929

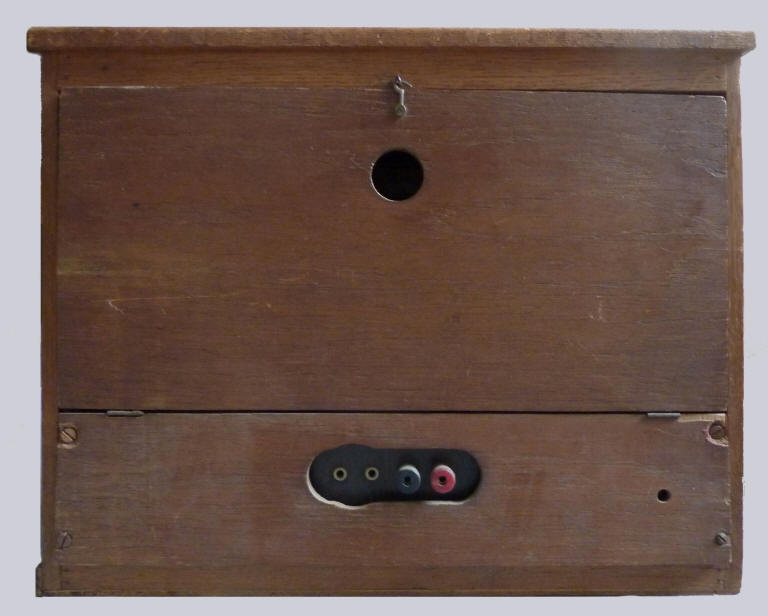

Back

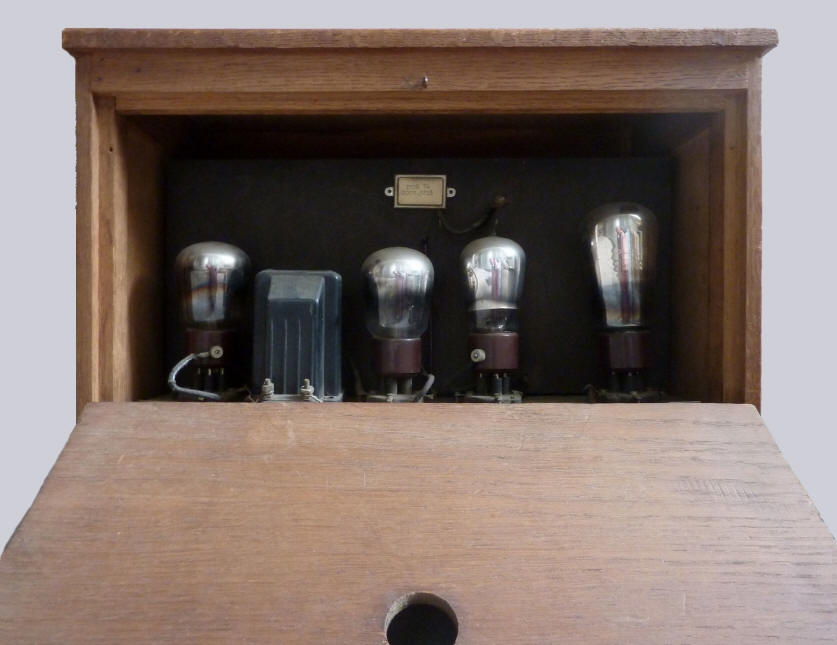

Back, with lid opended

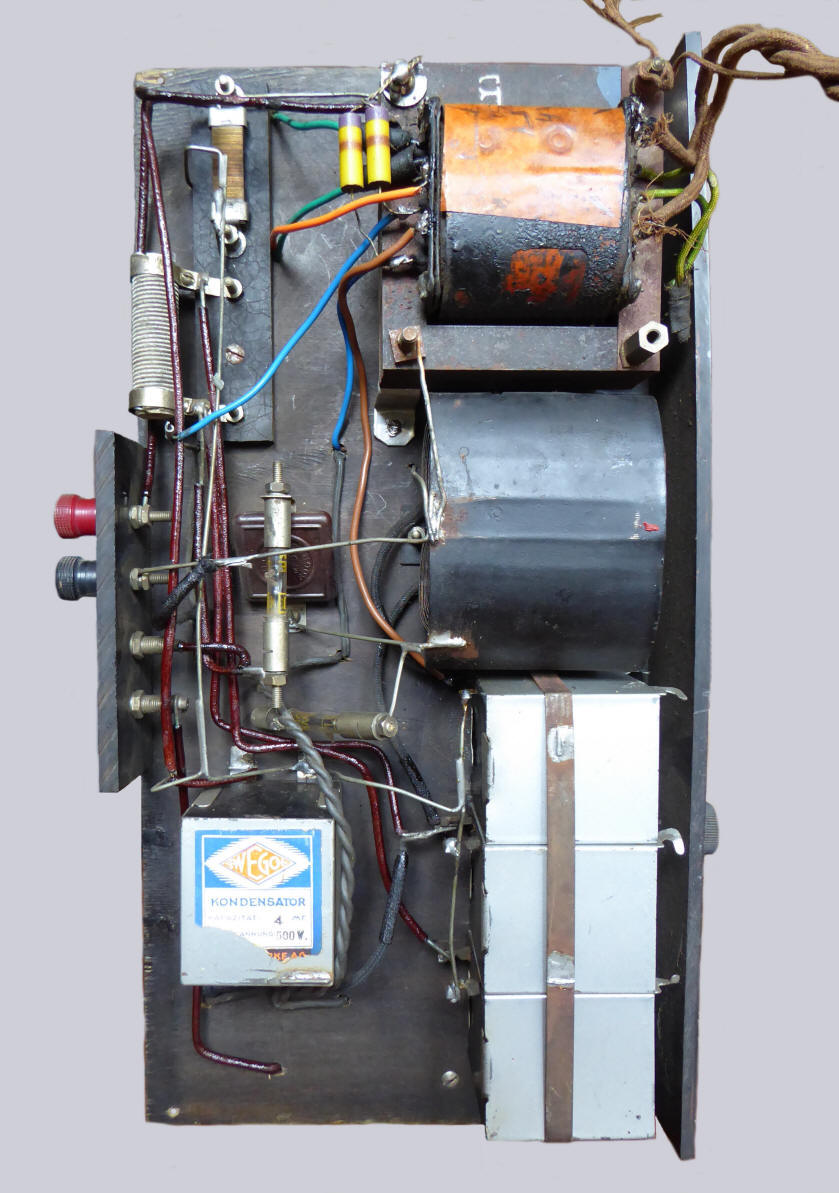

Under-chassis
view
The mains transformer is not original
Advertisement in
Radio Expres August 30, 1929
Havened advertises for commercial
travellers and agents to sell the new AC receiver.
Advertisement in magazine Radio Expres,
October 4th, 1929
Deze pagina is voor het laatst bijgewerkt op
zaterdag 27 april 2019
