Superheterodyne portable radio
Dark brown bakelite case and ivory plastic grille. Release date October 1949. The radio covers 185-560 meters and 1070-1900 meters in two bands. The circuit switch is turned on automatically when the roller-type shutter covering the scale is opened. The receiver has an internal frame aerial. The LT unit is a dry 1.5 volts battery and the HT battery consists of two 45 volts units. The price of the radio was 13 11s 4 d.

Judging by the number of survivors, the radio either wasn't popular or many were damaged because of the material used (bakelite and plastic). Bush made later portables out of something more sturdy.



On the right a picture from a Bush catalogue.
Data Valves
Serial number: 63/13943
Dimensions (whd): 30 26,5 13 cm
Made in: 1951
Purchased in: 2011
Weight: 10 1/2 lb (without batteries)
Click on a valve for more information
Circuit

What was broadcast in 1951?



Listen to "Mary Rose" sung by The Stargazers and recorded in 1951.

Back

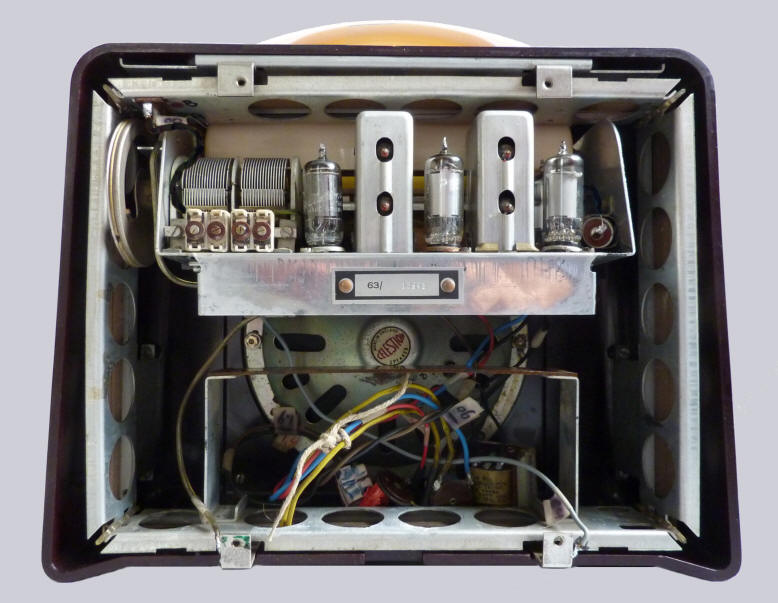

A look inside
With batteries (reproductions)
