Device that makes the morse signals of a telegram message audible

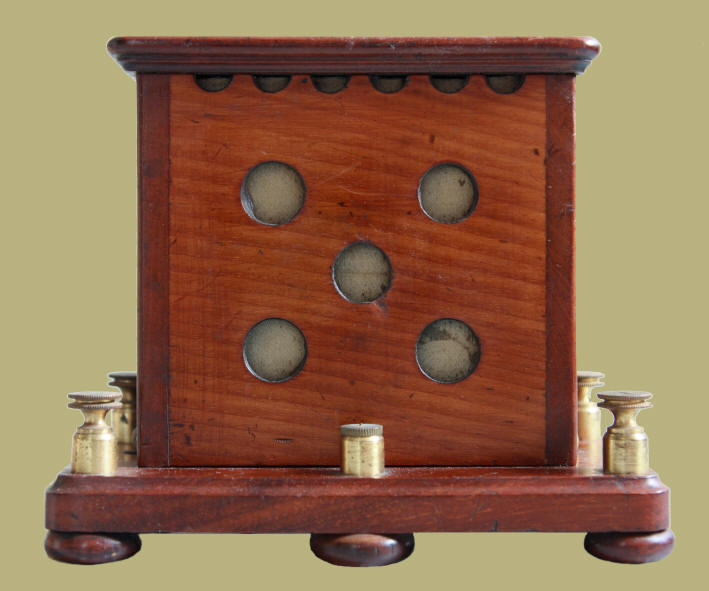

In a wooden box on five wooden feet. Made around 1900 by the firm Breguet in Paris. The detachable cap has a number of holes in it to let the sound pass through. The bottom plate has five brass binding posts, marked "S", "P" and "I", "T"; the binding post in the middle has no markings.
In Europe, before 1890, telegram messages were exclusively recorded using a "telegraph", a device that wrote the message on a paper strip. Later a "sounder" was used to make morse signals audible, so that the operator could write down the telegram message directly.
In The Netherlands this device was called "klopper"; in Anglo-Saxon countries "sounder"; in France "parleur".
Data
Serial number: 8320
Dimensions (whd): 15 x 12.5 x 9 cm
Made in: 1900
Purchased in: 2013
Sold in: 2023

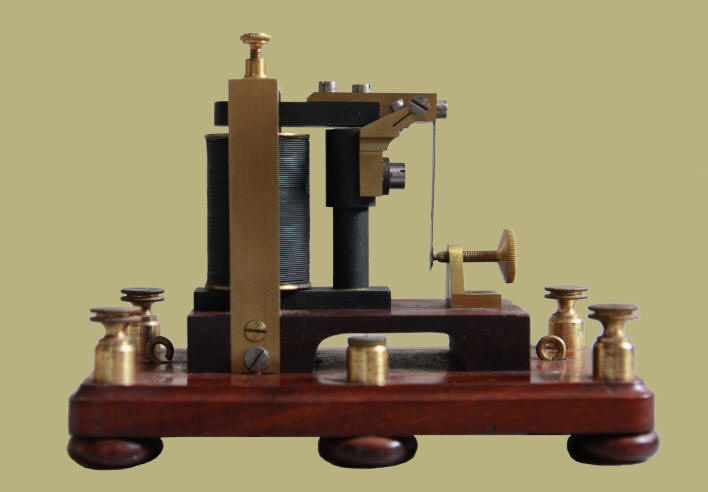

The device with its cap removed
Morse signals are made audible by the movement of a horizontal bar or anchor. The anchor is attracted and released by an electromagnet. This makes a knocking noise that is amplified by the base of the device. The freedom of movement of the anchor is set with the upper screw.

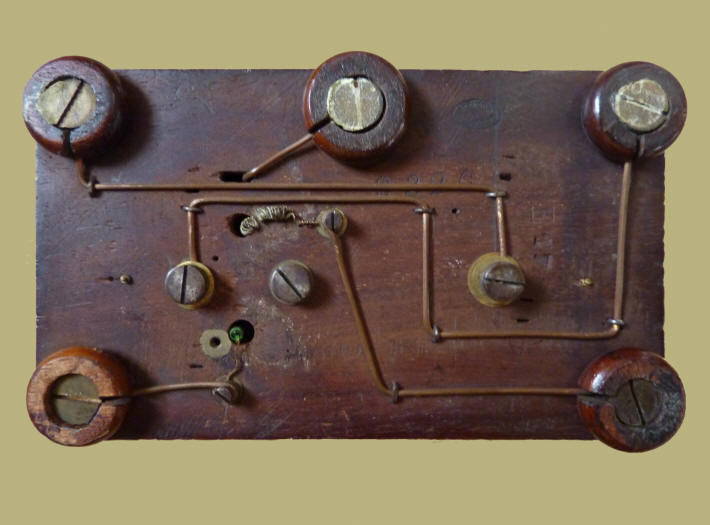

The bottom of the device
