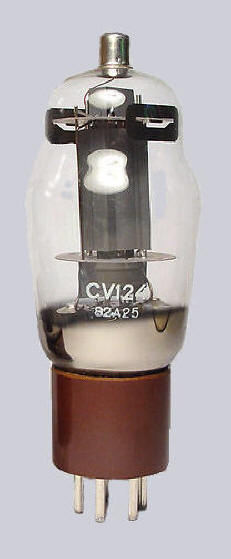

Beam power amplifier (tetrode)
Introduced in 1938
1 |
2 |
3 |
4 |
5 |
tc |
Base |
f |
g2 |
g1 |
k,g3 |
f |
a |
UY5 |
Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
gm |
Pout |
Pdiss |
6.3 |
0.9 |
600 |
300 |
-28 |
40 |
3 |
6 |
12.5 |
25 |
Equivalent |
4Y25, 807, ATS25,
ATS25A, CV1060, CV124, CV1364, CV1374, CV1572,
QE06/50, QV0525, VT100, VT100A,
VT60A |
|
