C453

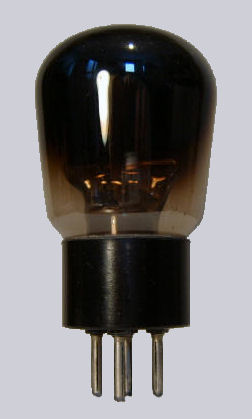

Philips C453

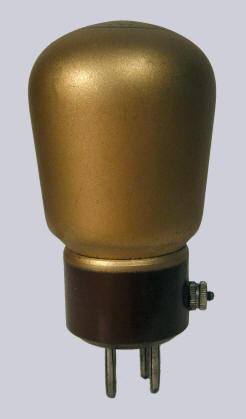

Philips C453 with side connection

Output penthode

Introduced in 1930

1	2	3	4	5/sc	base
f	a	f	g1	g2	B5

Vf Af Va Vs Vg mAa mAs Ra gm Pout Pdiss

4 0.25 300 200 -25 20 4.5 35,000 1.7 2.8 6

Equivalent 3-453, M704, PP430, RES374, W453, W506
