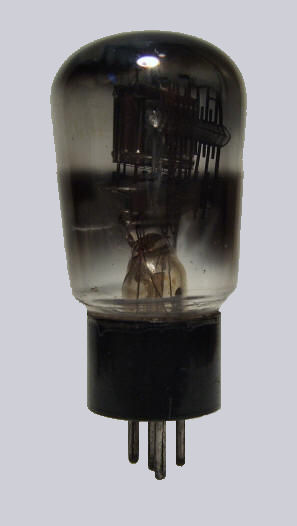

PP430

Tungsram PP430

Output pentode

Introduced in 1929

1	2	3	4	5/sc	base
f	a	f	g1	g2	B4/B5

Vf Af Va Vs Vg mAa mAs ra gm Pout Pdiss

4 0.25 300 200 -20 20 4.5 33,000 1.5 2.8 6

Equivalent

3-443, APP495, C443, DW3, PM24A, PT425, R89, L427D, RES364, W506, W443
