Superheterodyne receiver

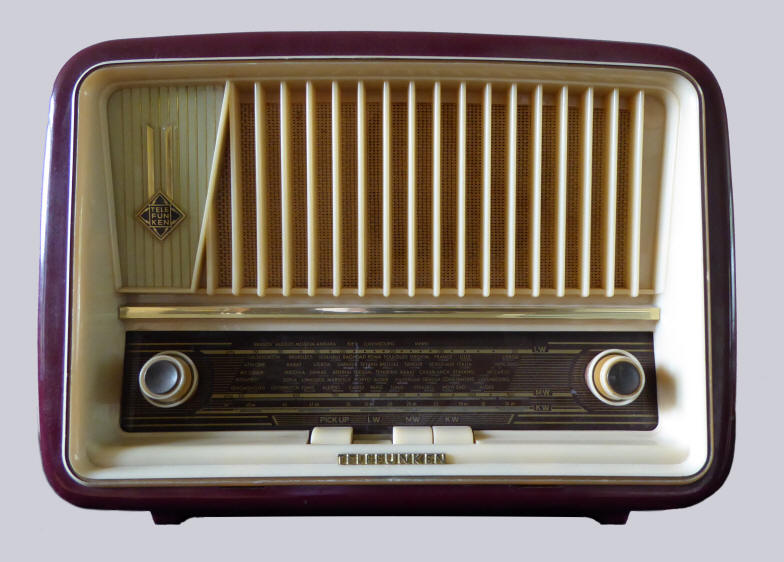

Cabinet made of aubergine coloured plastic; the front is made of crème coloured and transparent plastic. The knobs from left to right: on/off/volume control, pick-up, long wave, medium wave, short wave, tuning. At the rear of the receiver are the antenna and the ground buses, and a connection for a tape recorder or gramophone. The radio can also be powered from a storage battery by using an additional plug-in inverter unit (vibrator), the ZWII. The radio has an internal plate antenna.
Data Valves
Serial number: 854559
Dimensions (w×h×d): 37 × 27 × 17  cm
Made in: 1956
Purchased in: 2005
Sold in: 2022
Click on a valve for more information

Circuit

What was broadcast in 1956?


Listen to "Swing Hei!" sung by Paul Kuhn and his Musik-Mixer, from the film "Liebe, Sommer und Musik", recorded in 1956

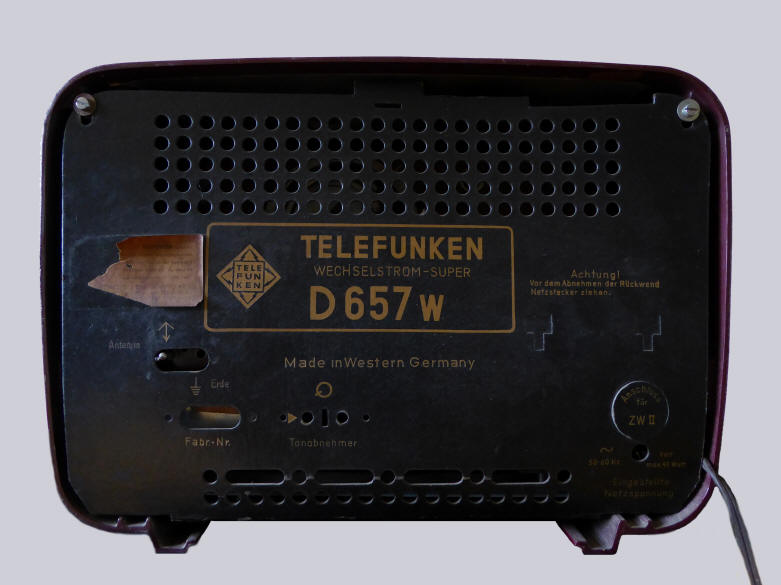

Back with back panel

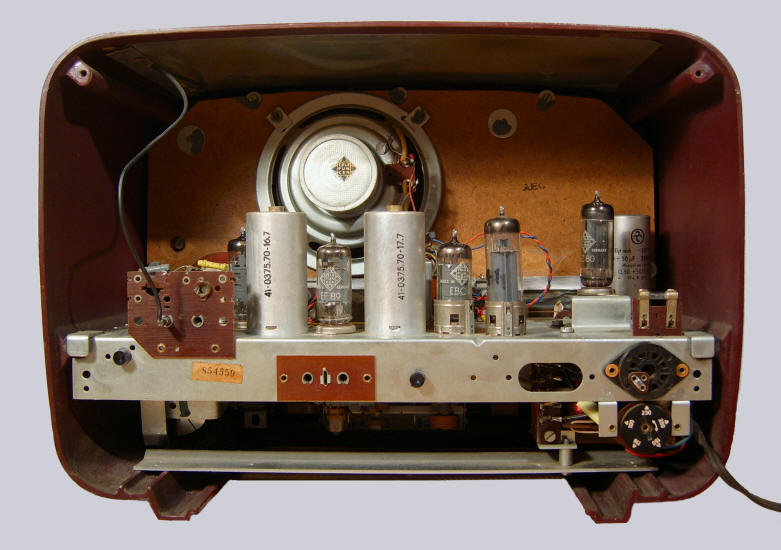

Back
