Brown painted
metal case, lid made of black bakelite. Base made of
wood painted black.
Left: loudspeaker connection; right: 3 antenna
connections, gramophone connection and earth connection.

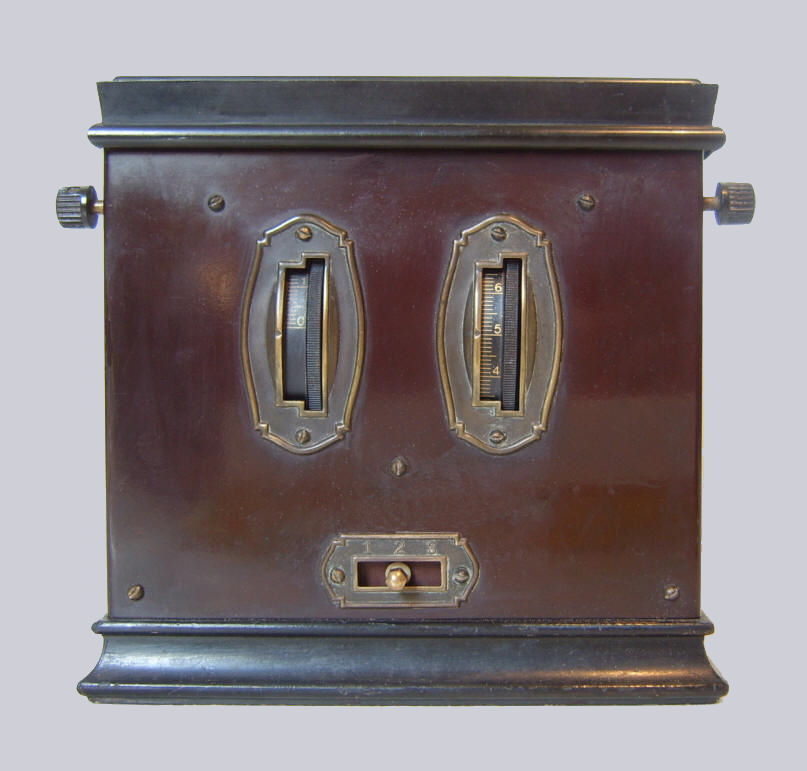

In the front two drum scales (0 - 10 degrees). Left:
feedback, right: tuning. On the left and right knobs for
fine-tuning. The band switch has three
ranges: 1. 200-400 m, 2. 300-800 m, 3.
700-2000 m. A RE134 triode is used as rectifier. In
later versions this valve was replaced by a real
rectifier, the RGN354. In some models a second REN1004
is used, instead of the REN1104.
Listen to "Wenn der
weiße Flieder wieder blüht", from the
Revue "Donnerwetter 1000 Frauen",
by the Odeon Dance
Orchestra, leader Dajos Béla, recorded in 1928

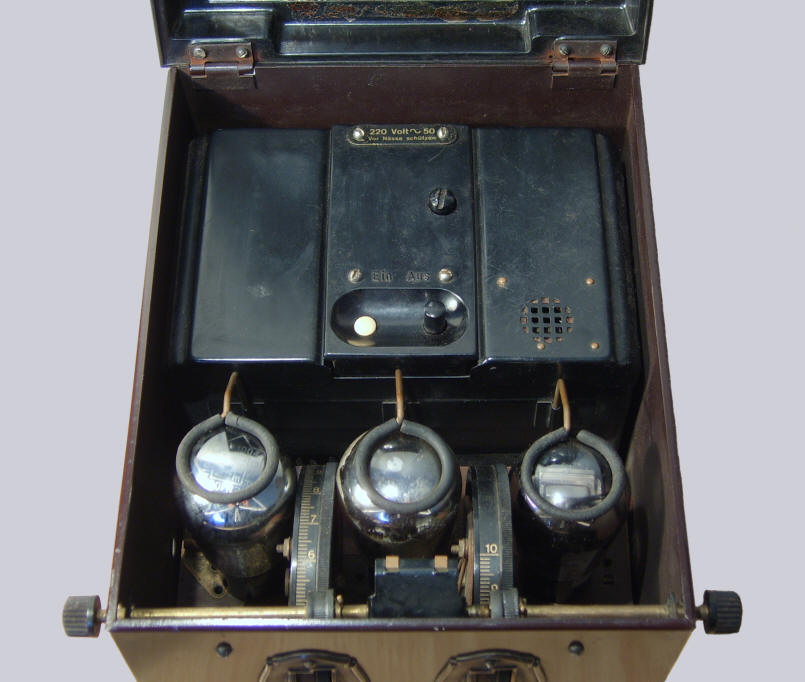

A look inside
Upper right:
rectifier (in the section with the small grill)
Side view
Below: three
different antenna connections and earth, above: connector for a
gramophone player.
