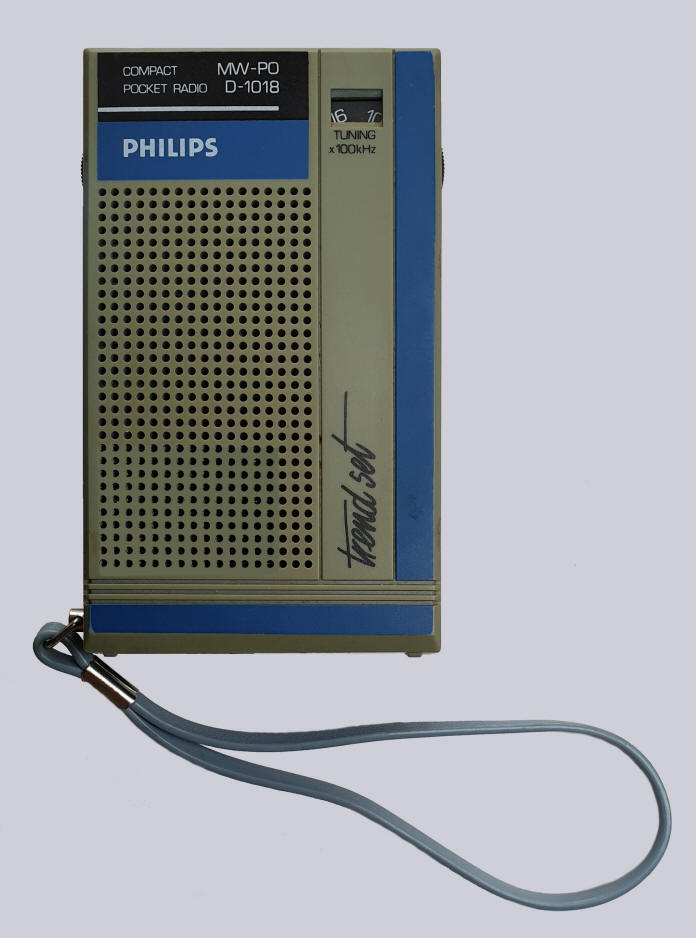

Pocket radio with 6 transistors |
 |
|
In blue and black case with
carrying strap.
The lighter blue colour
is discoulored at the top and has turned to gray. |
| The knobs:
left: on/off/volume control, right: tuning. Medium wave
only. |

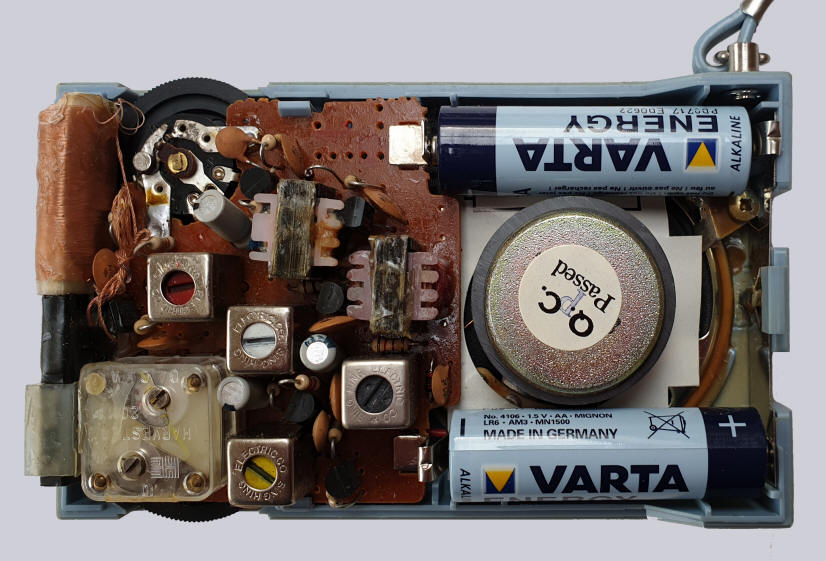

| Transistors:
CS9011,
CS9011,
CS9011,
CS9011,
CS1402,
CS9012,
Diode:
CDG24. Diameter loudspeaker: 5.7 cm, output: 0.25 W. |
| The radio is
powered by two 1.5 volt
AA batteries. |
| The original
price was f
29,-. In 1986 the price was lowered to f 19.50. The
radio was available in a number of colours. |
| It was made
for Philips in Hong Kong by the
Sing Hing Electric Co. |
|
Contrary to what is
indicated in the advertisement on the right, the radio
does not have a connection for headphones. |
| Data |
|
| Serial number:
|
KZ 009103 |
| Dimensions: |
7 x 12 x 2.8 cm |
| Made in:
|
1985 |
 |
Circuit |
| Given to me in: |
2020 |
| Sold in: |
2022 |
| Weight: |
180 gram |
