Philips 964AS Engels

Simple AC single-circuit TRF receiver

In Bakelite cabinet. Made by Philips in Praha-Hloubetin, in the former Czechoslovakia.

For medium and long wave.

The scale is illuminated from behind. The scale lamp is a Philips 8046 (6 volts/0,5 A). Scale 0-100. The loudspeaker is an electro-magnetic Philips 2311, diameter 18 cm, impedance 2000 ohms.

At the rear there are three antenna connections, an earth bus and a connection for a gramophone. In the middle there is an adjustment knob for the coil.

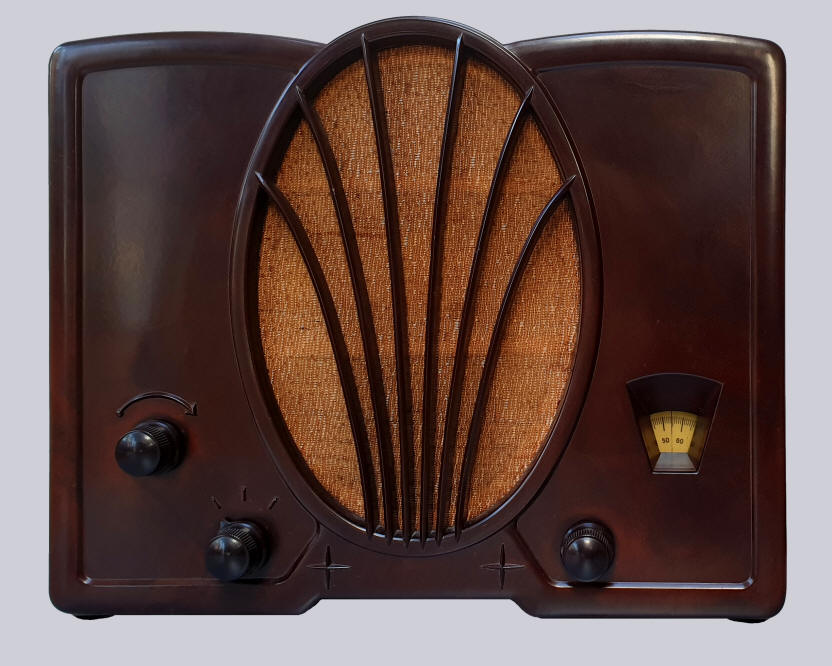

The knobs form left to right: volume/reaction control, wave length switch with three positions (2 x medium wave and long wave), tuning.

Data
Serial number:	P22789
Dimensions (w × h × d):	29.8 × 25 × 14.5 cm
Made in:	1933
Purchased in:	2019
Weight:	4.8 kg
Voltages:	110-250 volts ~

Valves

	Click on a valve for more information
	Circuit

What was broadcast in 1933?

Listen to "Když odejde děvče" (When the girl leaves) by the Dixi taneční orchestr, leader Niki Němec, sung by Eduard Ingriš, recorded in 1933

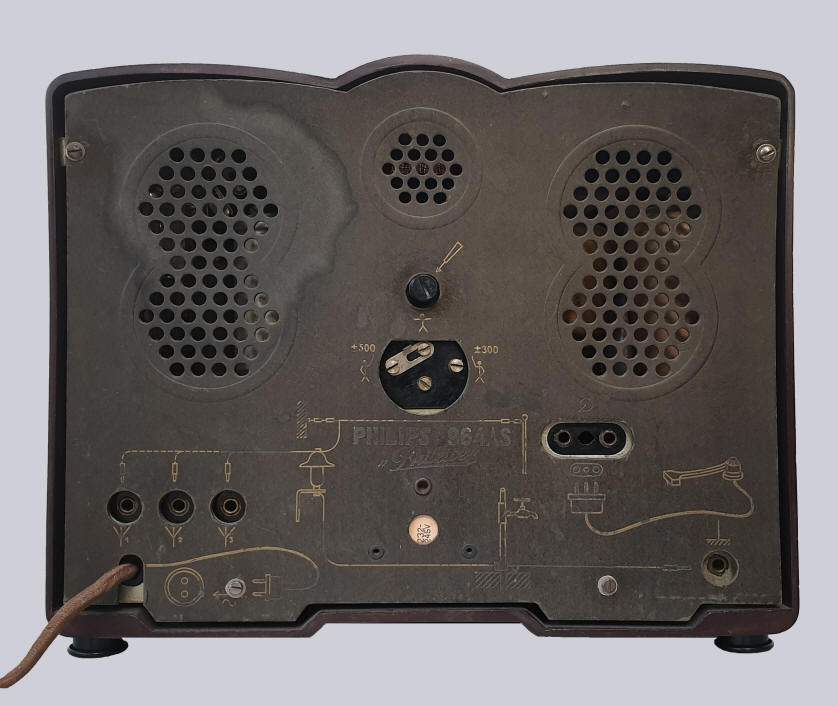

Back

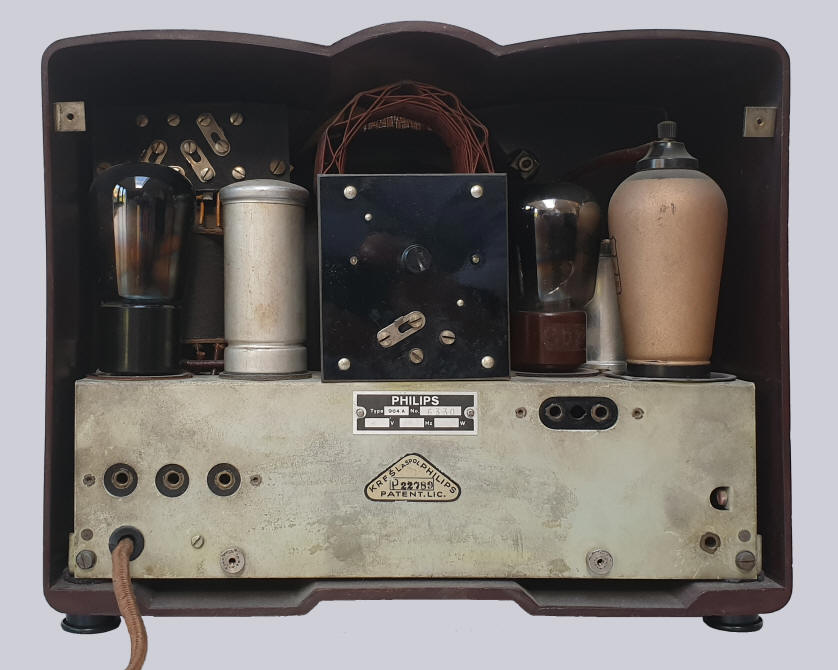

Back with back panel removed

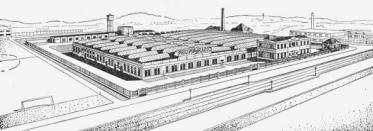

	The Philips factory in Praha-Hloubetin

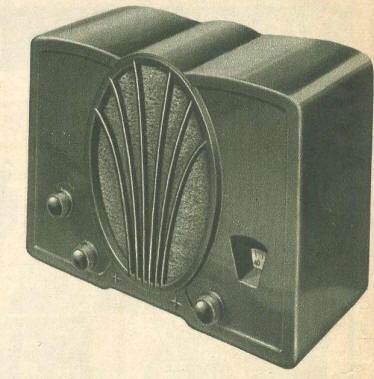

Billboard for the Philips 964AS	Picture from the user manual
