Analogue multimeter

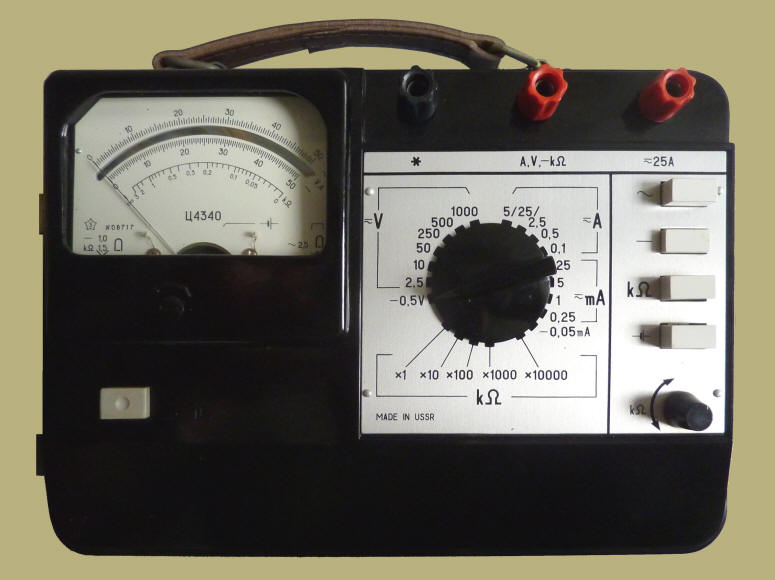

Made in the former Soviet Union. The meter is housed in a sturdy metal case with a leatherette handle. The front is made of plastic. The test leads can be stored in the lid.
Measures AC and DC voltages up to 1000 volt, currents up to 25 Amps and resistors up to 10 Mohm. The internal power supply is provided by two flat 4.5 volt batteries.
Data
Made in: 1983
Purchased: 2013
Sold: 2022
Dimensions (whd): 23 x 12 x 16 cm
Weight: 2.1 kg

Made by the factory Elektroizmeritel, Zhitomir in the Ukraine.

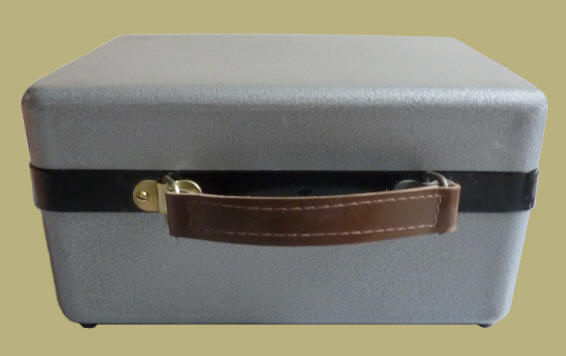

The silver grey metal case

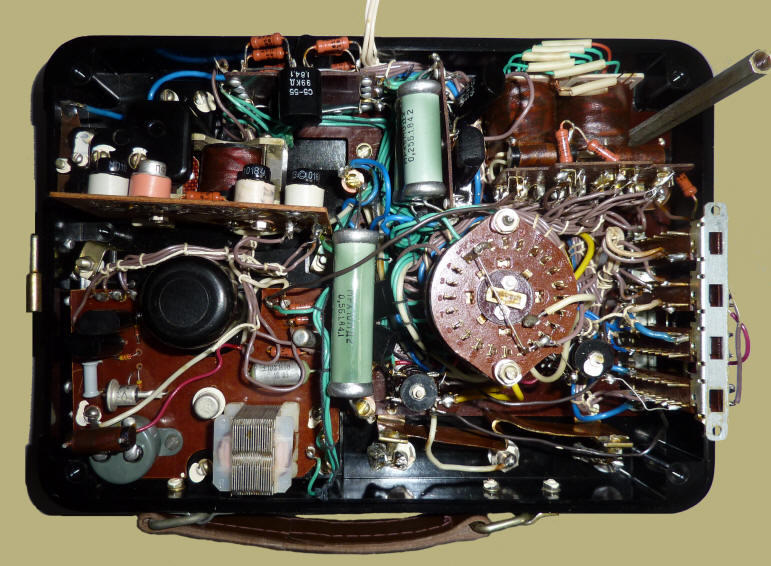

The chassis
