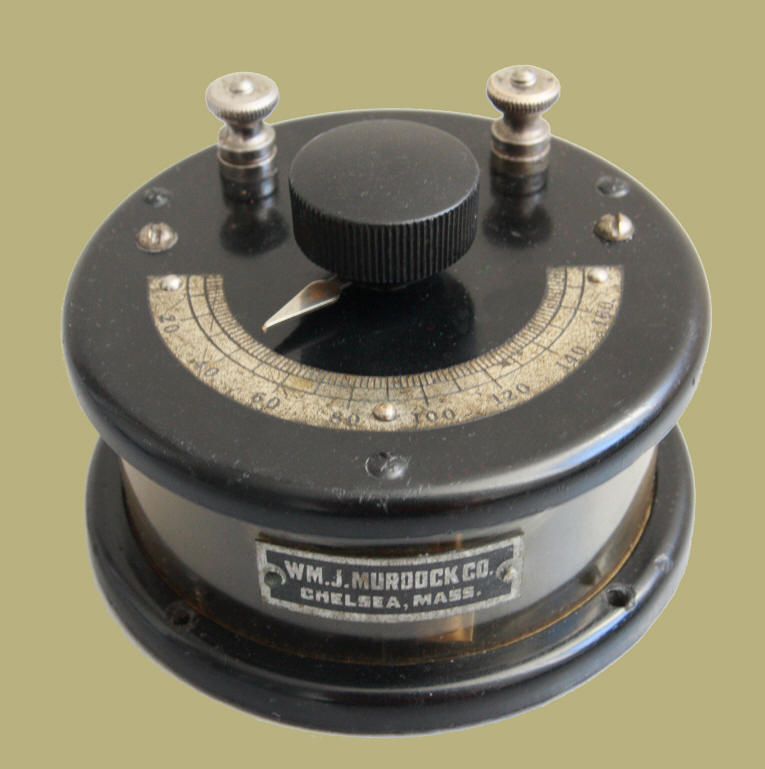

With Bakelite and celluloid case and metal scale
(0-180°).
Made by the American firm Wm. J. Murdock Co., 40, Carter Street,
Chelsea, Massachusetts. Rotor and stator are made of aluminium. |
|
The condenser, that can be used as a
separate module in combination with a receiver, has 24
plates and a value of 500 pF. The catalogue number is
A368. There was also a 43 plate condenser (catalogue
number A366) that has a value of 1000 pF. |
|
These condensers were made from 1916
until the beginning of the twenties. |
|
In The Netherlands, the condenser was
sold for f 13.50. |
| Serial number: |
None |
| Dimensions (h x w) : |
6.5 x 10 cm |
| Made in: |
± 1920 |
| Given to me in: |
2012 |
| Sold in: |
2023 |
|
|

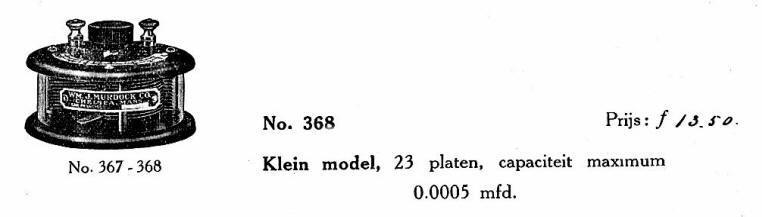

| Picture from a
Dutch Murdock catalogue,
about 1923 |
|
|
|
