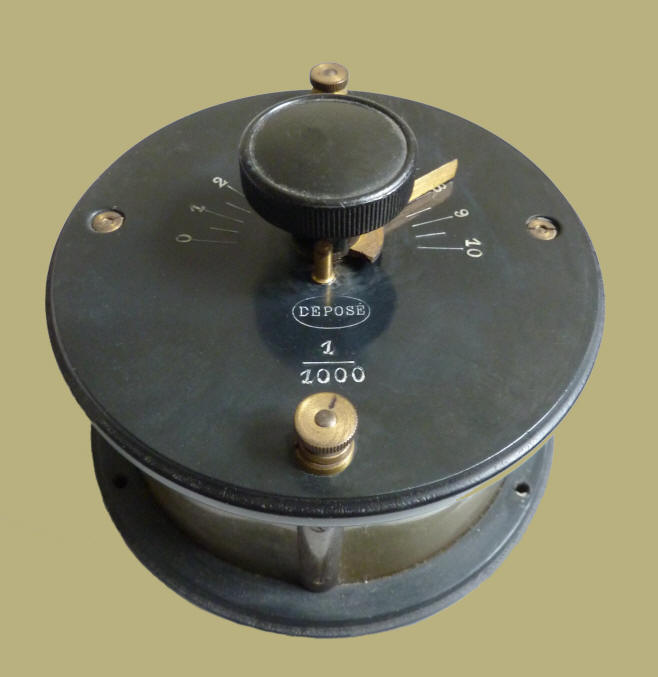

French tuning condenser
With ebonite lower- and upper plate and transparent celluloid case. Scale 1-10. Text "Depos" and "1/1000". Rotor and stator are made of aluminium.
The condenser, that can be used as a separate module in combination with a receiver, has 12 plates and a value of 1000 pF.
These condensers were made from 1914 until the beginning of the twenties.
Serial number: none
Dimensions (h x w): 10.5 x 13 cm
Made in: 1920
Purchased in: 2013
