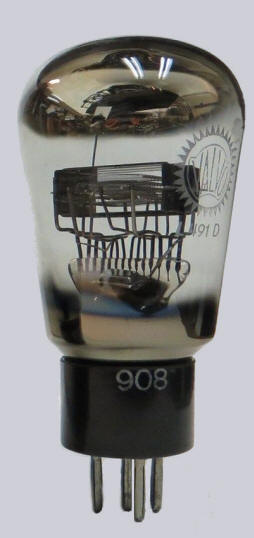

Pentode
Introduced in
1930
| 1 |
2 |
3 |
4 |
sc/5 |
base |
| a |
f |
f |
g1 |
g2 |
B5 |
| Vf |
Af |
Va |
Vs |
Vg |
Ra |
mAa |
mAs |
gm |
Pout |
Pdiss |
| 4 |
0.9 |
400 |
300 |
-30 |
33,000 |
28 |
6.8 |
1.8 |
3 |
12 |
| Equivalent |
5-443, D1004, DW11,
DW3, L496D,
PM24C, PM24M, PP4100, PP4101, RES664D,
RES964,
RS4543,
T1304,
TE43H, TV4110,
W443H, W516,
WE30 |
|
|
|
