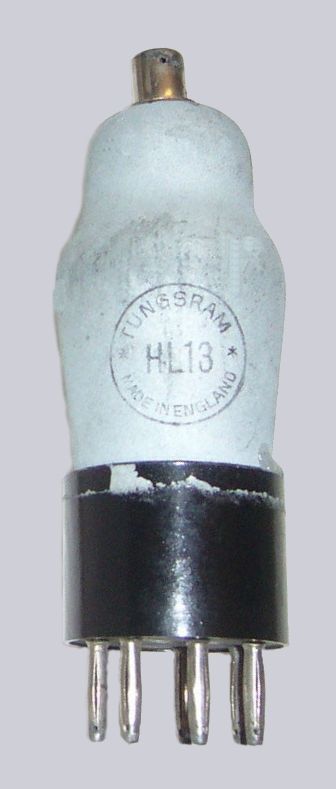

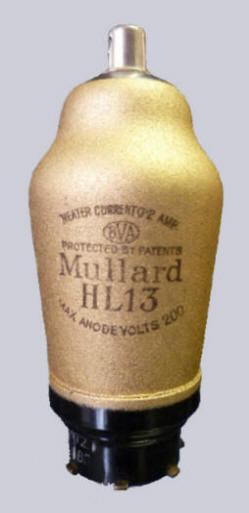

HL13 |

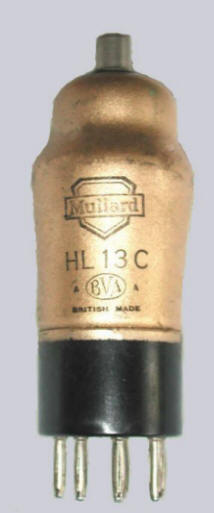

HL13C |
General purpose triode
Introduced in 1934, HL13C: 1935, Tungsram HL13:
1935, Tungsram HL13s: 1937
| |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
tc |
base |
| HL13/Tungsram HL13s |
m |
f |
f |
k |
- |
- |
- |
a |
g |
P |
| |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
tc |
|
base |
| HL13C/Tungsram HL13 |
m |
- |
- |
f |
f |
k |
a |
g |
|
B7 |
|
Vf |
Af |
Va |
Vg |
mAa |
ra |
gm |
Pdiss |
|
13 |
0.2 |
200 |
-3.7 |
5 |
12,000 |
3.3 |
2 |
| Equivalent HL13 Tungsram
HL13s |
CC2 |
| Equivalent HL13C Tungsram
HL13 |
4D1, CV1670 |
|
