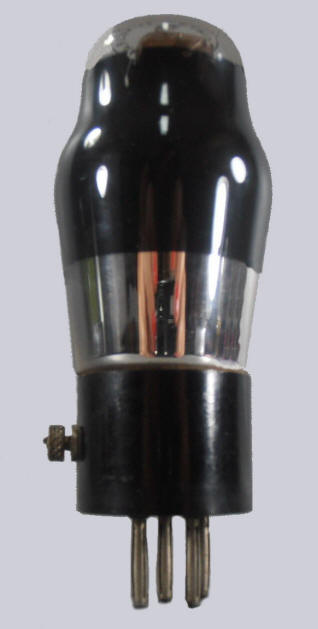

Output pentode
Introduced in 1932
| 1 |
2 |
3 |
4 |
5 |
sc |
base |
| a |
f |
f |
g1 |
k,g3 |
g2 |
B5+sc |
| 1 |
2 |
3 |
4 |
5 |
6 |
base |
| a |
f |
f |
g1 |
k,g3 |
g2 |
B5+1 |
| 1 |
2 |
3 |
4 |
5 |
6 |
base |
| k,m |
f |
f |
g2 |
g1 |
a |
B6 |
| Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
ra |
gm |
Pdiss |
Pout |
| 4 |
1.1 |
250 |
250 |
-15 |
30 |
7 |
70,000 |
2.5 |
7 |
3 |
| Equivalent |
5-453,
DW9,
E453,
L4150D,
MP/PEN,
MPT4, PEN4VX,
RENS1374,
RS4353, S100, TE534 |
|
|
|
