Beam power amplifier (tetrode)
Introduced in 1937

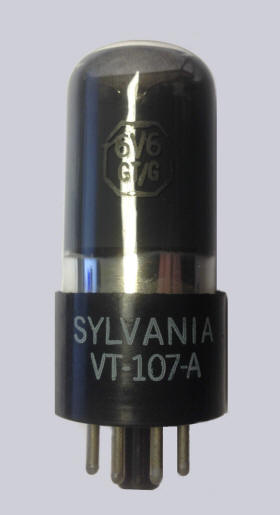

VT107A = 6V6G/GT
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
base |
| m |
f |
a |
g2 |
g1 |
- |
f |
k |
octal |
| Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
ra |
gm |
Pout |
Pdiss |
| 6.3 |
0.45 |
315 |
225 |
-13 |
34 |
2.2 |
77,000 |
3.75 |
5.5 |
12 |
| Equivalent |
6V6, 6AY5, CV510, CV511, WT2100082, WTT123 |
|
