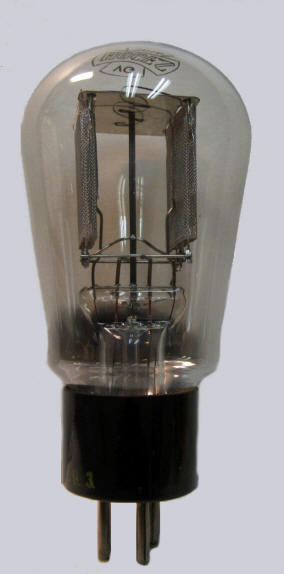

Full-wave rectifier
Introduced in
1932
| 1 |
2 |
3 |
4 |
base |
| f |
a1 |
f |
a2 |
B4 |
|
Vf |
Af |
Va |
mAa |
series res. |
cap. (max) |
| 4 |
2 |
500 |
120 |
50Ω (500V) 30Ω
(300V) |
32μF |
| Equivalent |
1561, 460BU, 75301,
APV4, D5-125B, DW3, G2004, G2504, G4200,
KL75301, P4002,
PV4200,
R3, R4200, R561, RO431, TV90, U14,
V22,
V480,
WE52 |
|
|
|
