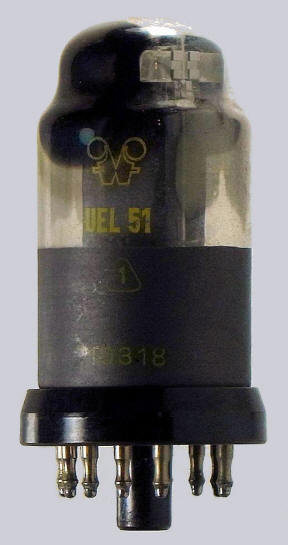

Funkwerk Erfurt UEL51 |
|
Double tetrode for series feed
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
base |
| a(1) |
g2(1) |
g1(2) |
k |
- |
a(2) |
f |
f |
g2(2) |
g1(2) |
G10A |
| |
Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
ra |
gm |
Pdiss |
Pout |
| Ouput tetrode |
62 |
0.1 |
200 |
200 |
-8.5 |
45 |
5 |
17,000 |
9 |
9 |
4 |
| Detector tetrode |
|
|
100 |
50 |
-0.7 |
1.7 |
0.55 |
300,000 |
1.7 |
0.75 |
|
|
