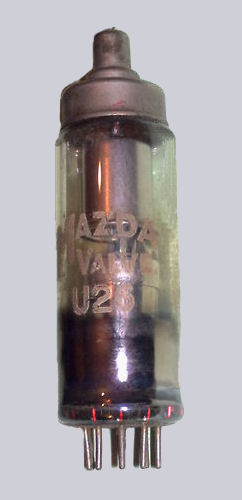

High voltage half wave rectifier
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
tc |
base |
| f,k,s |
f |
* |
f,k,s |
f |
f,k,s |
* |
f |
f,k,s |
a |
noval
B9A |
*) Pins 3 and 7 are
floating. They must not be left unconnected. They should be
connected to the external circuit with no more than 100v between
adjacent pins. The cathode, shield and one end of the heaters
are connected to pins 1,4,6 and 9. The other end of the heater
is connected to pins 2,5 and 8.
| Vf |
Af |
kVa (max) |
mAa (max) |
| 2 |
0.35 |
23.5 |
80 |
|
