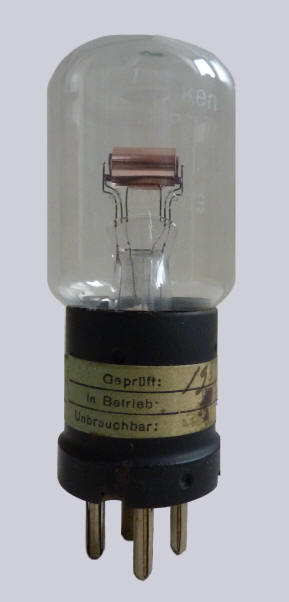

Telefunken EVE173 (1918) with copper anode and metal base.

Output triode

Introduced in 1914. The tube was used in amplifiers like the Telefunken EV89d, EV211a and b, EV176 and EV192a, b, c and d. Earlier models had nickel anodes and grids. Because of the war shortage, other materials were used, in this case copper.

1 2 3 4 Base
a f g f Telefunken



Vf Af* Va mAa gm
2.8 0.53-0.56 90 1.5-2 0.1

*) with iron resistance

Equivalent RJE

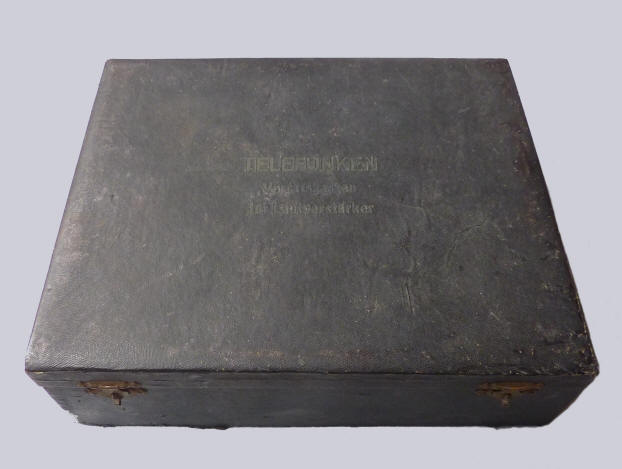

Telefunken Vorratskasten für Lautverstärker (maintenance box for sound amplifier)

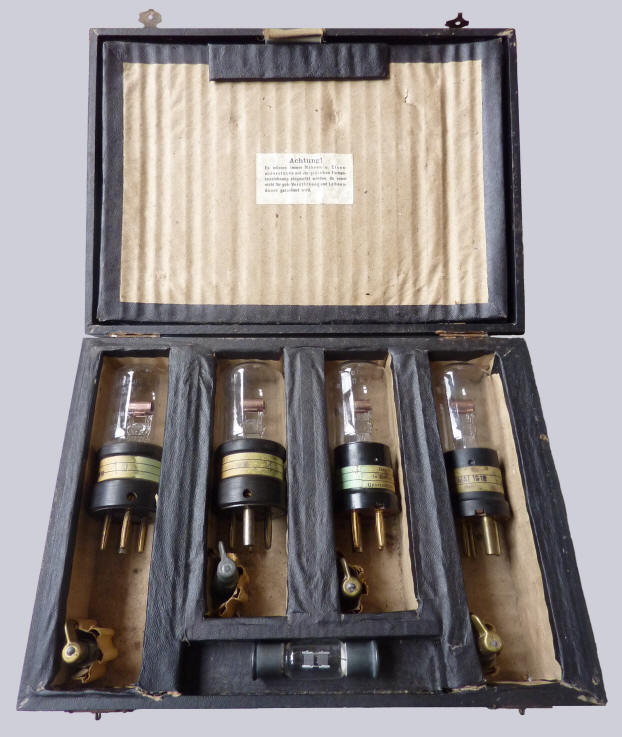

The four valves with their iron resistances

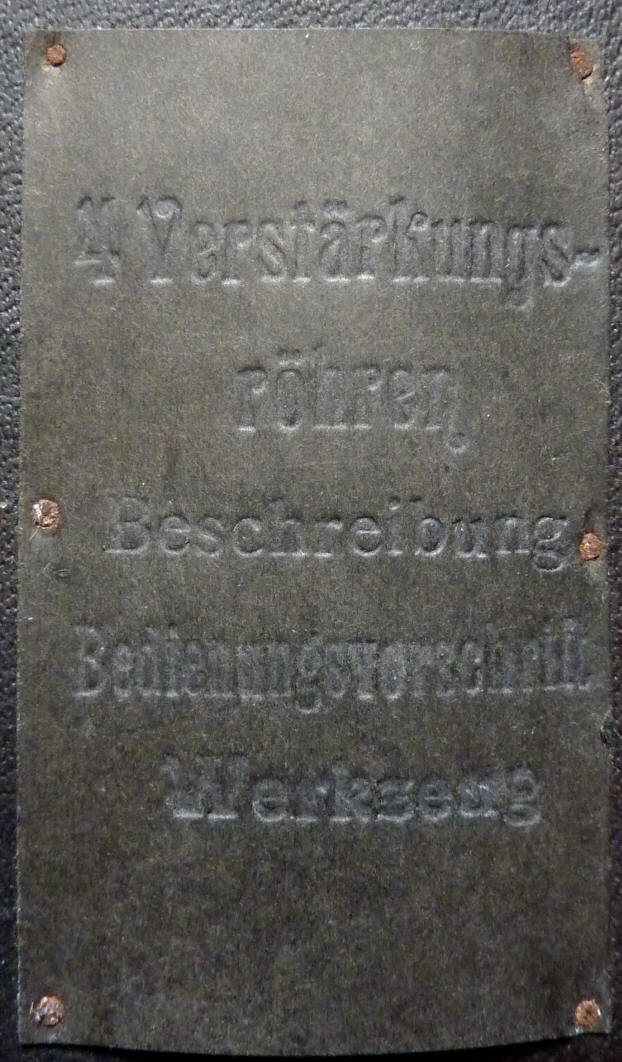

Text on one of the sides of the box:
"4 Verstäkungsröhren-Beschreibung- Bedienungsvorschrift-Werkzeug"
(4 Amplifying valves-Description-User manual- Tools)

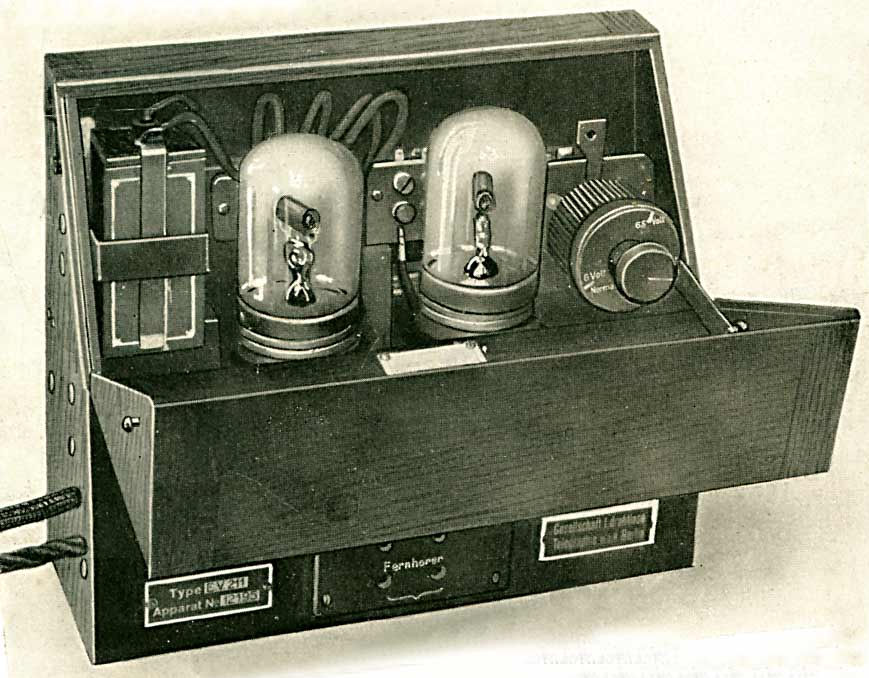

Telefunken EV211 (1917) with two EVE173 valves
