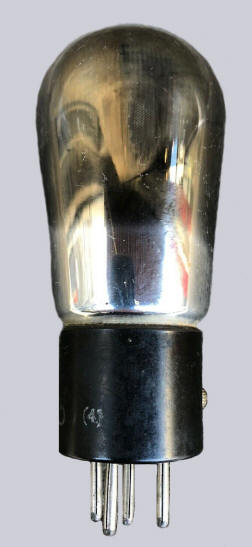

| Philips E453
with side
connection |
|

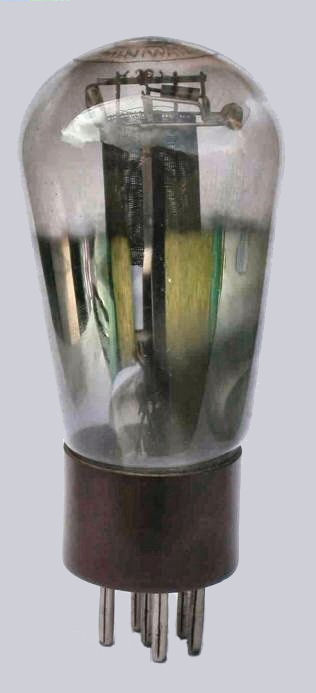

| Philips E453
with B6 base |
|
 |
 |
|
B5/B5+sc |
B6 |
Output
pentode
Introduced in
1932
|
1 |
2 |
3 |
4 |
5 |
6/sc |
base |
|
a |
f |
f |
g1 |
k,g3 |
g2 |
B5+sc |
|
k,g3,s |
f |
f |
g2 |
g1 |
a |
B6 |
|
Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
Ra |
gm |
Pout |
Pdiss |
|
4 |
1.1 |
250 |
250 |
-15 |
24 |
7 |
70,000 |
2.5 |
2.8 |
6 |
| Equivalent |
5-453, A4IF,
APP4120, DW9, L4150D,
MP/PEN,
MPT4,
P440N, PEN4VX,
RENS1374d, RS4353, S100,
TE534 |
|
