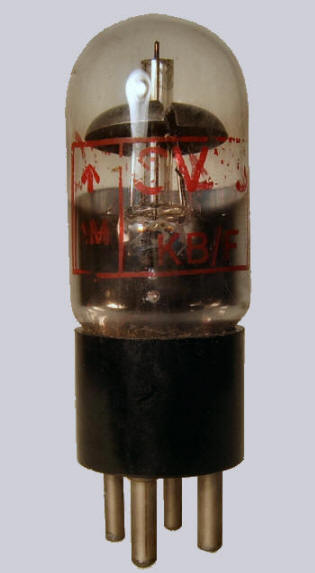

CV75



Military thyratron cold-cathode gas relay

Control gap breakdown voltage 75V
Control gap maintaining voltage 60V
Main gap breakdown voltage 150V
Main gap maintaining voltage 75V
Transfer current 5mA
Max peak control electrode current 30mA
Max average control electrode current 10mA
Max peak reverse current in main gap 5mA


Equivalent 4313C
