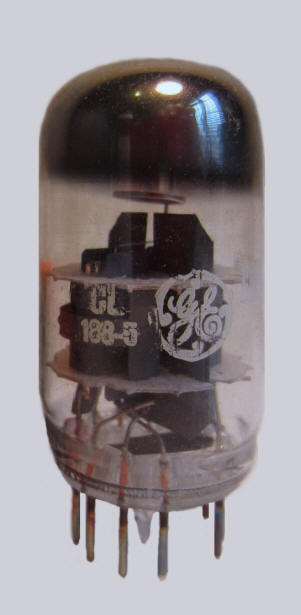

Double pentode
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
base |
|
f |
a(p2) |
g2(p2) |
g3(p2) |
k(p2) |
g1(p2) |
a(p1) |
g3(p1),is |
g2(p1) |
k(p1) |
g1(p1) |
f |
Decar 12 |
| |
Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
ra |
Pdiss |
| pentode A |
8.4 |
0.45 |
125 |
125 |
-* |
14 |
3.6 |
220,000 |
2.2 |
| pentode B |
|
|
125 |
125 |
5.5* |
9 |
2.5 |
300,000 |
2.2 |
*) at mAa=20
|
|
|
