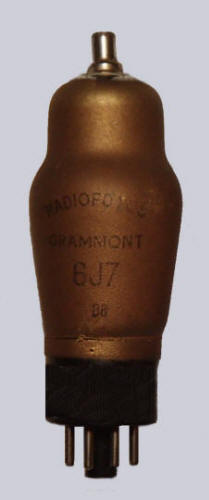

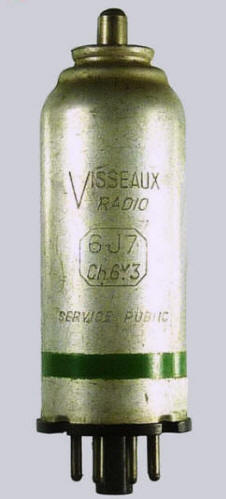

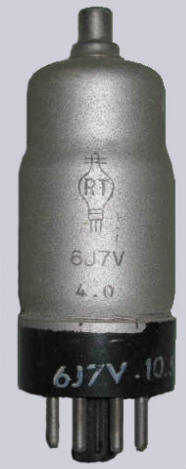

RF amplifier pentode
Introduced in 1936
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
tc |
|
m |
f |
a |
g2 |
g3 |
- |
f |
k |
g1 |
| Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
ra |
gm |
Pdiss |
| 6.3 |
0.3 |
250 |
100 |
-3 |
2 |
0.5 |
1,500,000 |
1.22 |
0.75 |
| Equivalent |
ARP16,
BVA247,
EF36, EF37A,
CV358, CV1074,
CV1935,
CV1936,
CV1937,
NR49, OM5,
VR56, VT74(RAF),
VT91,
VT91A,
Z63 |
|
|
|
