6201

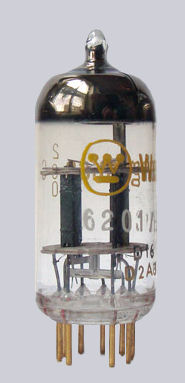

Westinghouse 6201

Double triode for computer use

Heater can also be connected for 6.3V, 0.3A operation

1	2	3	4	5	6	7	8	9	base
a(2)	g(2)	k(2)	f	f	a(1)	g(1)	k(1)	fct	noval

Vf	Af	Va	Vg	mAa	ra	gm
12.6	0.15	250	-12	10	10,900	5.5

Equivalent

12AT7, 13D9, 6060, ECC801S, E81CC, CV3508, CV4024, CV6091
