506

Philips 506 (120 mm)

Philips 506 (130 mm)

Full-wave rectifier

Introduced in 1927

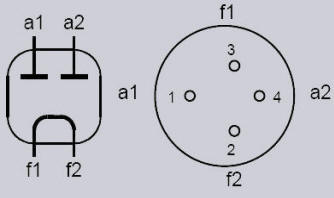

1	2	3	4	base
a1	f	f	a2	B4

Vf	Af	Va	mAa
4	1	300	75

Equivalent

6, 1823, 4619, B, D3, DG2, DW2X, G1054, G214, G490, KL74301, P2, PV495, R233, RGN1054, U10, V, V2, VG410, W6

Philips 506 later version (120 mm)

Philips 506K
