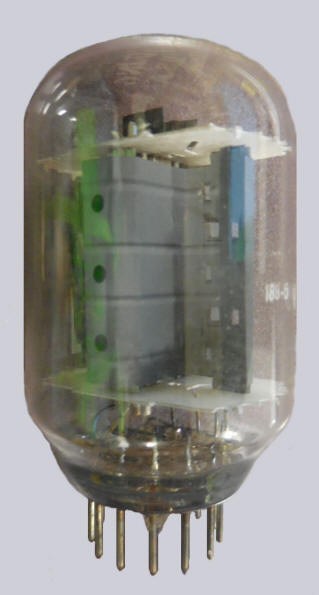

Double triode / beam power tube
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
base |
| f |
a(t2) |
g(t2) |
nc |
a(p) |
ic |
k,g3 |
g1 |
g2 |
g(t1) |
a(t1) |
f |
Decar 12 |
|
|
Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
ra |
gm |
Pa |
|
pentode |
16.4 |
0.6 |
150 |
150 |
-14 |
49 |
3.5 |
16,400 |
|
|
|
triode 1 |
|
|
150 |
|
-2 |
5.4 |
|
11,000 |
|
|
|
triode 2 |
|
|
150 |
|
-5 |
5.5 |
|
8,500 |
|
|
|
