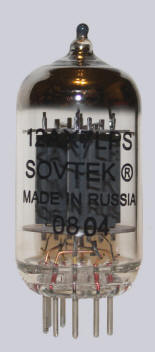

Philips 12AX7 made
in Canada |
|
.jpg)
|

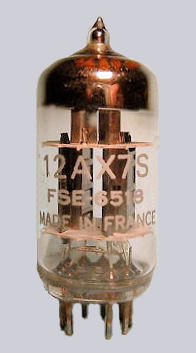

Tung-Sol 12AX7 made
in Russia |
|
.jpg)
|
.jpg)
|
Double triode
Introduced in 1948
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
| a2 |
g2 |
k2 |
f |
f |
a1 |
g1 |
k1 |
hct |
Heaters can also be connected for 6.3V, 350mA operation.
| Vf |
Af |
Va |
Vg |
mAa |
ra |
gm |
Pdiss |
| 12.6 |
0.15 |
250 |
-2 |
1.2 |
62,500 |
1.6 |
1 |
| Equivalent |
12AD7, 12DF7, 12DT7, 12DM7,
5751,
6681, 7025, 7058, 7729,
B339, CV4004, CV4110,
CV492,
E83CC,
ECC83, M8137 |
|
