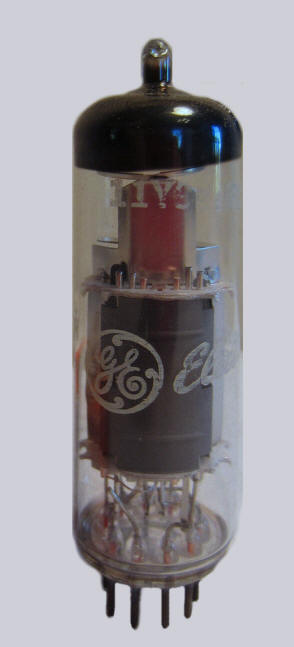

Double pentode
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
base |
| g1(2) |
k(2),g3(2) |
g2(2) |
a(2) |
f |
f |
k(1),g3(1) |
g1(1) |
g2(1) |
a(1) |
decal |
section 1: pins 7-10
section 2: pins 1-4
| |
Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
ra |
gm |
Pa |
| 1 |
11 |
0.45 |
170 |
170 |
-2.6 |
30 |
6.5 |
40,000 |
21 |
5 |
| 2 |
|
|
150 |
150 |
-2.3 |
10 |
3 |
160,000 |
8.5 |
0.5 |
|
|
|
