Digital scope

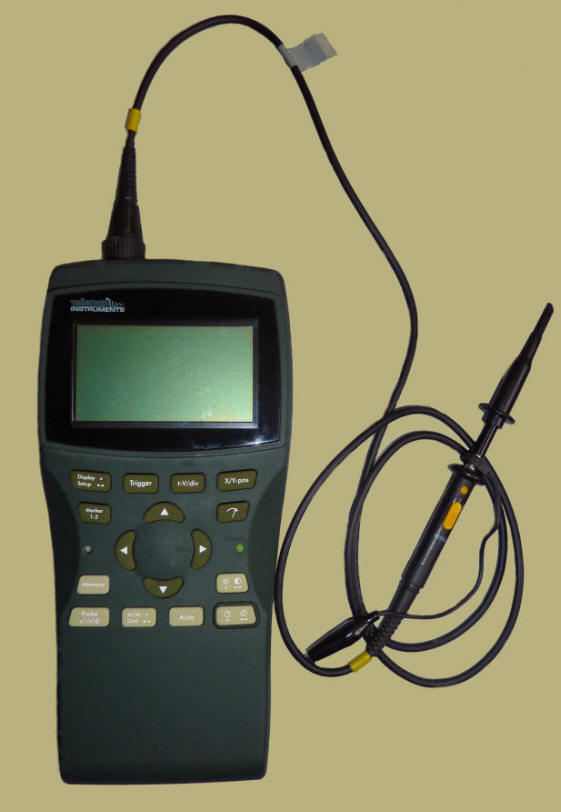

Pocket sized oscilloscope with fold-out stand on the back. Sensitivity is 0.1 mV. The scope uses 5 penlite batteries, rechargable batteries or 220/230 volts DC using an adapter. The results are shown on a clear LC-display with a resolution of 128 x 64 pixels.
Specifications

- 10MHz sampling rate
- 0.1mV sensitivity
- up to 2MHz analogue bandwidth
- 5mV to 20V/div in 12 steps
- 200ns to 1 hour/div time base in 32 steps
- full auto set up for volts/div and time/div
- trigger mode: run -normal - once - roll, slope -/+
- peak measurements: max., min., and peak to peak
- X and Y position shift
-   X1 en X10 probe calculation
- audio power measurements into 2, 4, 8, 16 en 32 ohms
- Rms power, peak power and AC + DC power
- AC measurements: Rms, dB (relative), dBV and dBm
- AC + DC measurements: DC, Rms, dB, dBV and dBM
- signal markers for volt and time
- marker readout: dt -1/dt (frequency) - dV
- zero reference set for DC and dB measurements
- recorder roll mode up to 25 hours per screen
- 2 memories for compare function
- LCD: 128 x 64 pixels / high contrast
- Power: 5 x 1.5V AA batteries or Nicd / NiHH
- up to 20 hours uptime with alkaline batteries
- Internal loader circuit
- auto power off

Made by Velleman Components, Legen Heirweg 33, 9890 Gavere, Belgium
Data
Dimensions (whd): 11 22.5 3.7 cm
Made in: 2002
Purchased in: 2013
