Analogue
multimeter |

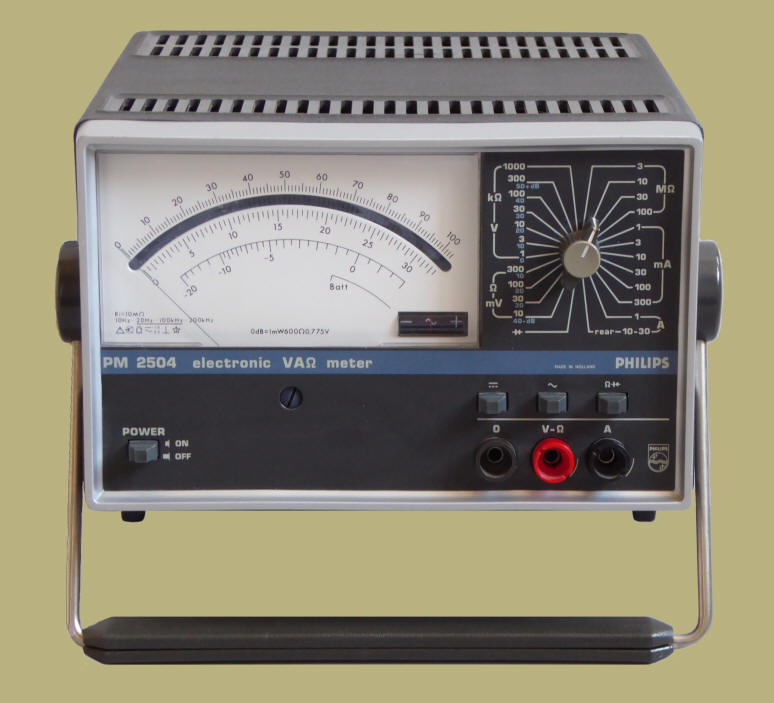

| In gray metal and
plastic case. The PM2504 is
a universal electronic multimeter for AC and DC, with 66 measuring
ranges, an integrated amplifier, a FET-input stage, a
linear mirror scale and a combined V - Ω input.
Because of the high
input impedance, accurate measurements with high
impedance are possible.
AC polarity is show by a moving-coil meter. |
 |
| A diode test and a
continuity test are also possible. |
| Power supply: a 9 volt AC adapter or
six UM2 1.5 v Baby
batteries. |

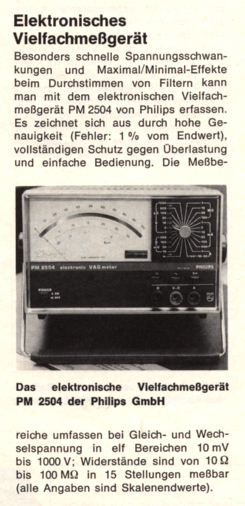

| The PM2504
was introduced in the beginning of 1976. The price was f
1095,- , excl. VAT. |
| Measuring ranges: |
| Volt and KΩ |
1- 1000 in 7 steps |
| mV and Ω |
10 - 300 in 4
steps |
| MΩ |
3 -100 in 4 steps |
| mA |
1 - 300 in 6 steps |
| A |
1 - 30 in 2 steps
(rear connections) |
| dB |
-40 tot +50 dB in 10 steps |
|
Data
|
|
Serial number |
0005456 |
|
Made in |
1976 |
| Purchased in
|
2016 |
| Dimensions |
21
x 13 x 27.5 cm (w × h × d) |
| Weight |
2.6 kg |
| |
|
|
|
|
