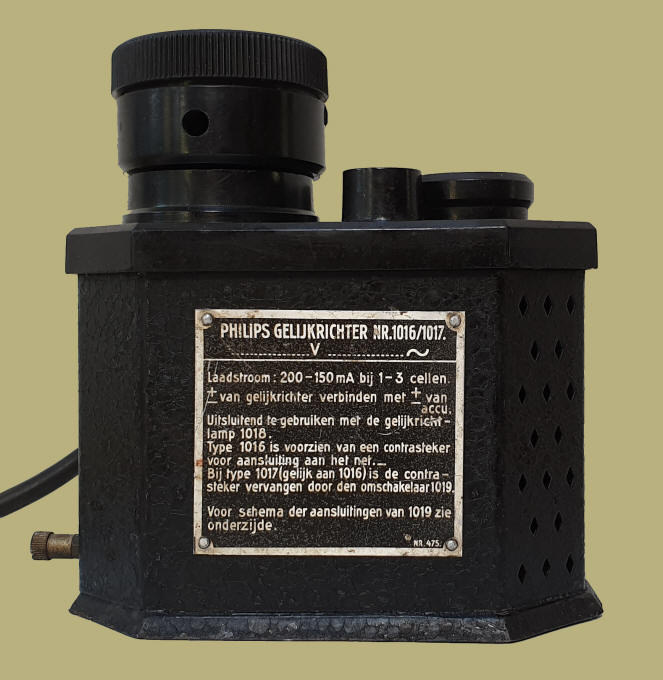

Battery charger
In metal housing with Bakelite top. Suitable for loading 1-3 cells. Charging current 200-150 mA.
The battery charger 1016 is called 1017 if it is equipped with a switchable plug, the 1019. There are two positions: A: rectifier switched on, battery eliminator switched off, filament current interrupted and B: rectifier switched off, battery eliminator and filament current switched on.
Data
Serial number: 119018
Dimensions: 12.8 x 10.5 x 6.2 cm
Made in: 1929
Voltage: 220 volts
Given to me in: 2019

User manual

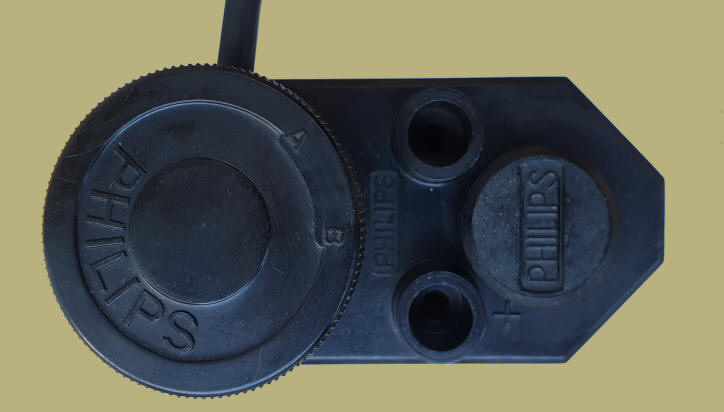

Top view

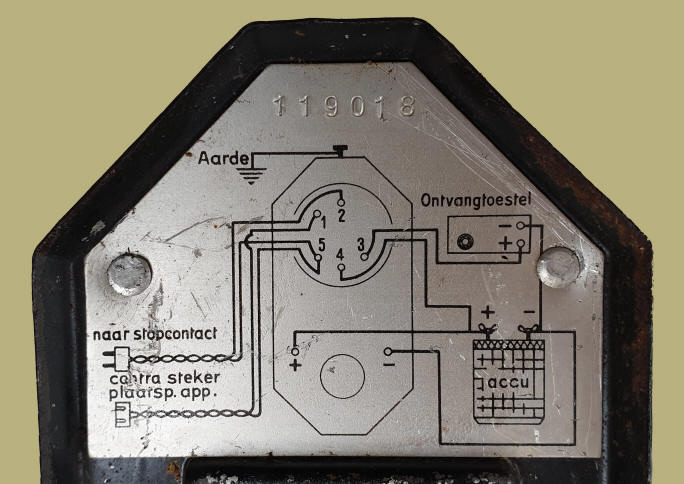

Bottom view
