Signal generator

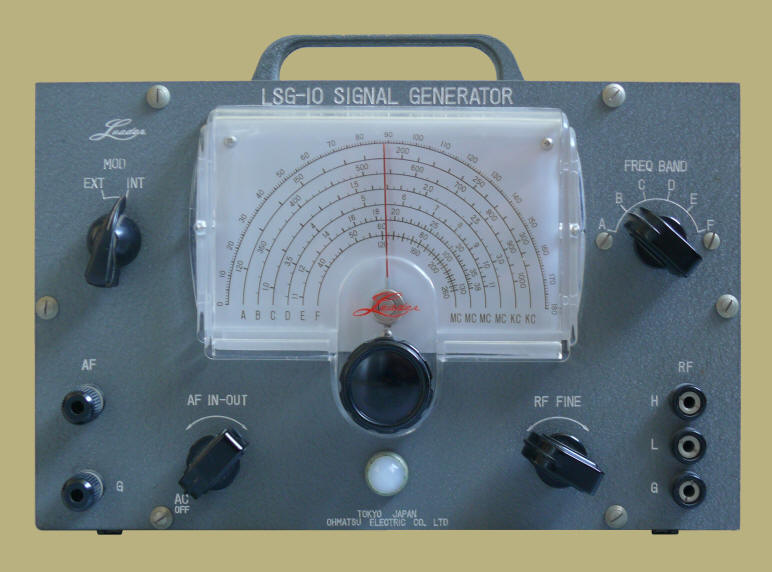

A simple signal generator, used for receiver alignment. The generator has six bands, from 120 FC to 260 MC. It was introduced in 1960. Tubes: 6AR5 and 12BH7. The central knob is connected to a planetary gear. When is turned to the right, the pointer on the frequency scale rotates to the left. Can be used with internal and external modulation. Made by the Japanse company Ohmatsu Electric Co. Ltd., Tokyo.
Data
Purchased in 2014 Circuit and user manual
Made in 1960
Dimensions (h x w x d) 16 x 25 x 11.5 cm
Voltage 220 volts~
