Separating filter |
|

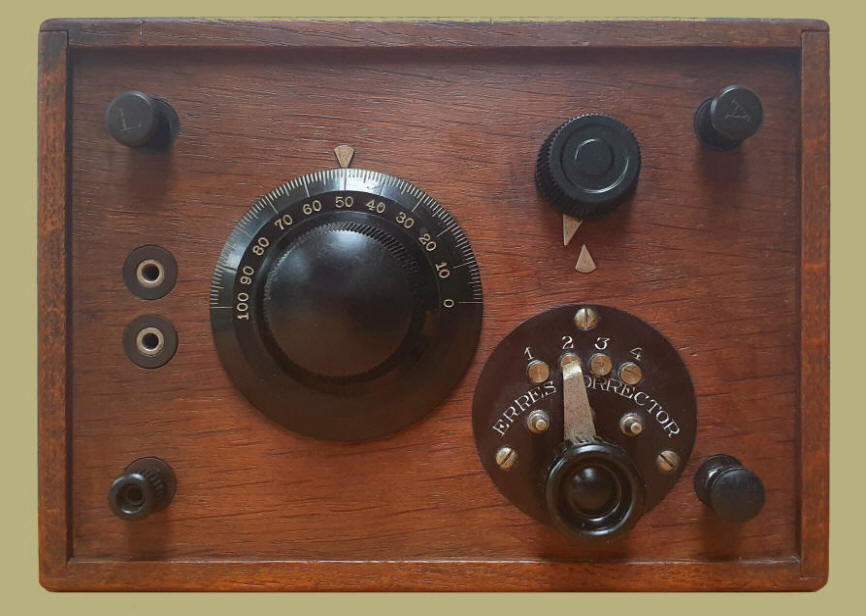

In an oak cabinet, with four connections on the
corners on the front, a coil holder, a tuning capacitor with
Bakelite knob with graduation (1-100), a selectivity setting and
a selector switch (1-4).
|
|
The Corrector works with capacitive antenna
coupling.
The circuit of the device was developed by Mr. Ph.A.J.
de Rop, an employee of Stokvis.
|
| The original price was f 30,-.
|
|
Data |
|
| Serial number: |
195 |
| Dimensions (h x w x d): |
16 x 22 x 10,5 cm |
| Made in: |
1926 |
| Purchased in: |
2021 |
|
|
|
|
|
 |
|

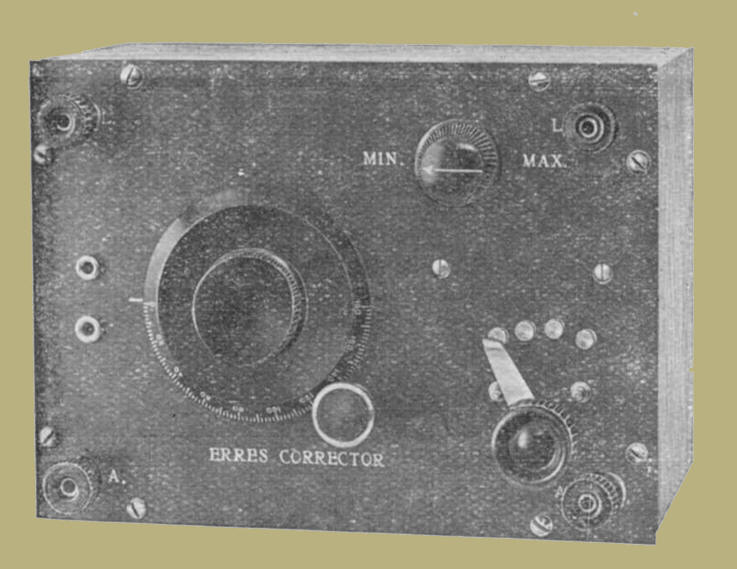

The device was made from late 1926 to 1928. Later
versions, like the one above, had a Bakelite faceplate with a
slightly different layout and added fine-tuning.
|
 |
|

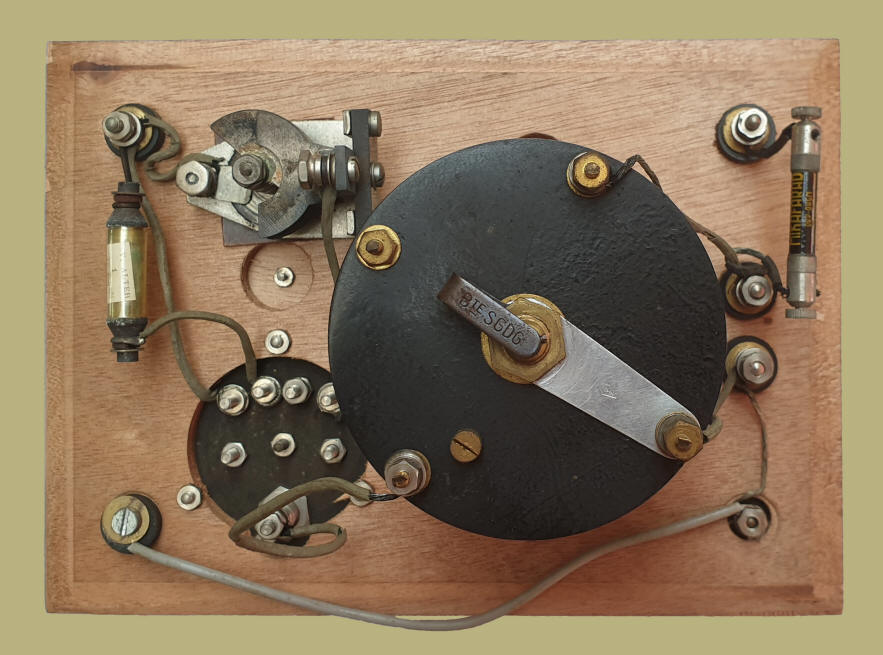

The inside of the Corrector |
 |
 |
|

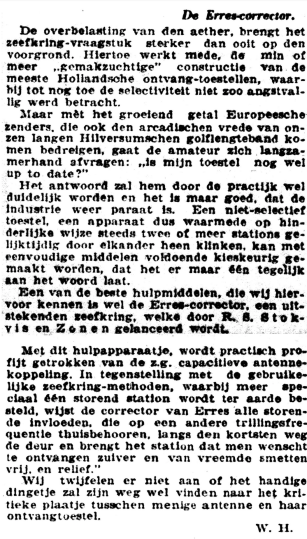

Article in De Telegraaf of March 3, 1927 |

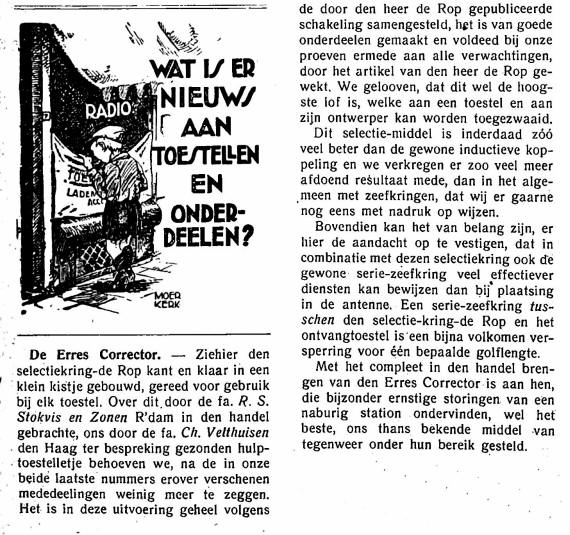

Article in Radio Expres of February 25, 1927 |
|
|
