![](Foto's/RENS1214schema.jpg)

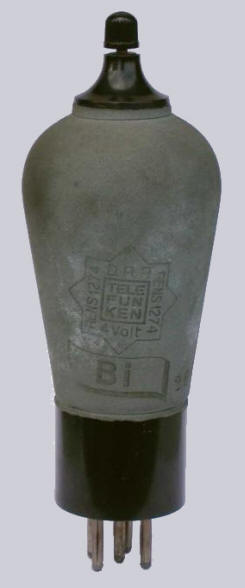

Tetrode
Introduced in 1933
1 |
2 |
3 |
4 |
5 |
tc |
base |
g2 |
f |
f |
g1 |
k |
a |
B5 |
Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
ra |
gm |
Pdiss |
4 |
1.1 |
200 |
100 |
-1.5..-40 |
3..0.1 |
0.8 |
350,000 |
2 |
1.5 |
Equivalent |
AS4125,
DN5004, DW8, E455, H4115D, MM4V,
MV4110, MVSG,
RENS1214, RS4345, T4500C,
VMS4B, W419, W455 |
|
|
|
