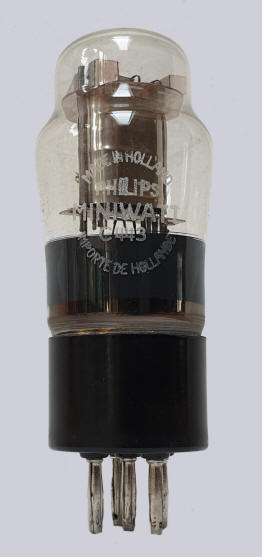

Philips C443 with side connection |
|
|
Output pentode
Introduced in 1928
| 1 |
2 |
3 |
4 |
5/sc |
base |
| f |
a |
f |
g1 |
g2 |
B4/B5 |
| Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
Ra |
gm |
Pout |
Pdiss |
| 4 |
0.25 |
300 |
200 |
-20 |
20 |
4.5 |
33,000 |
1,5 |
2.8 |
6 |
| Equivalent |
3-443, APP495, DW3,
M704,
PM24A,
PP430, PT4,
PT425, R89, L427D,
RES364,
W506, W443 |
|
